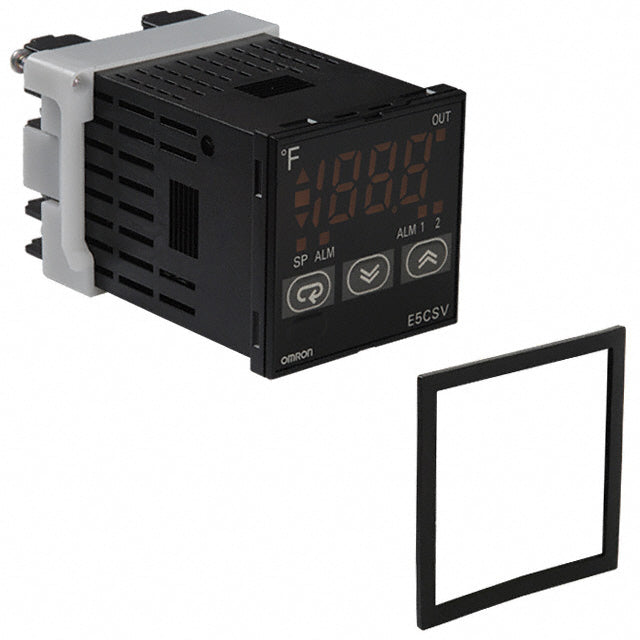

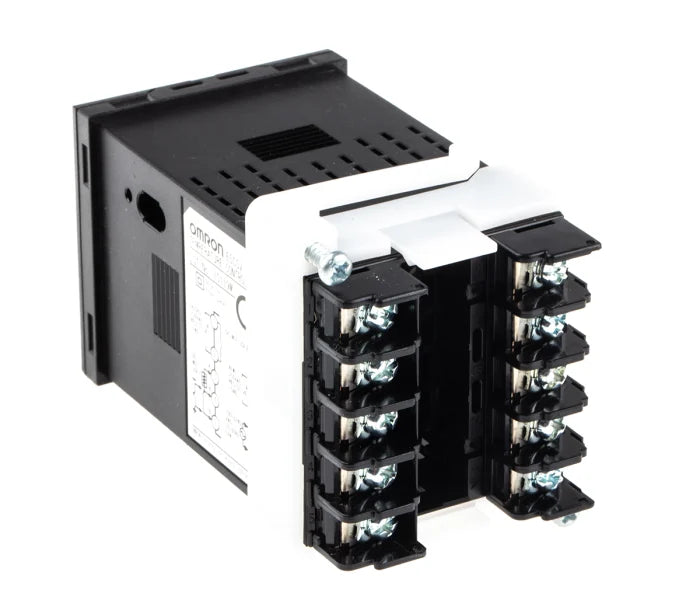

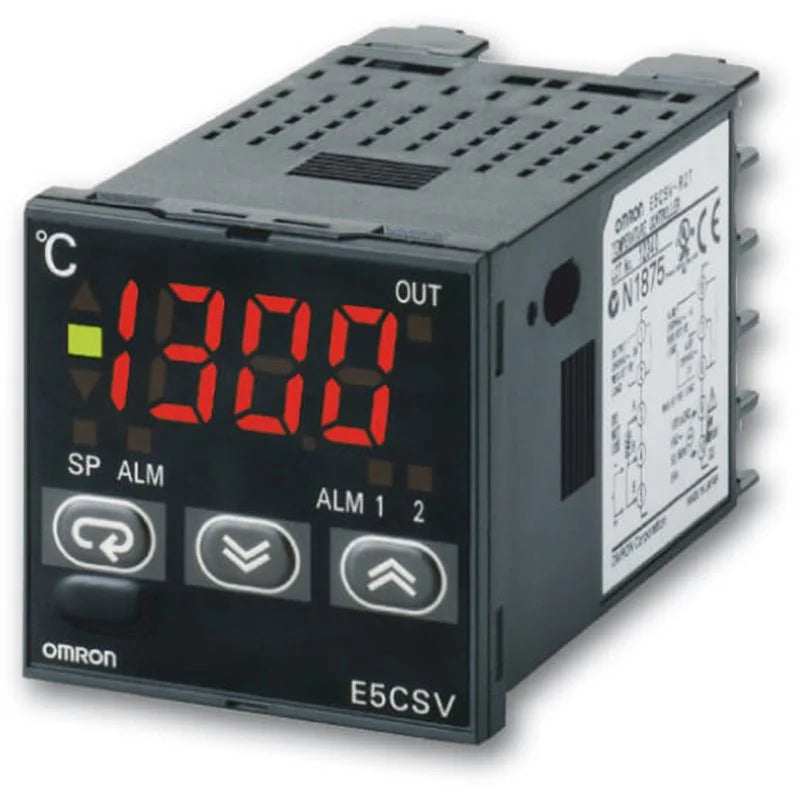

Omron E5CSV-R1T-500 AC100-240 PID Temperature Controller 48×48 mm Universal Input Relay Output

The Omron E5CSV-R1T-500 AC100-240 is a compact and versatile PID temperature controller ideal for industrial and process-control applications. Designed to fit a standard 48×48 mm DIN panel cut-out, it operates from a wide supply voltage range of 100–240 VAC, making it suitable for global use in factories, ovens, HVAC systems, and machine automation.

This controller accepts universal temperature inputs, including thermocouples (K, J, T, etc.) and platinum resistance thermometers (Pt100/JPt100), allowing integration with a variety of sensors. It features a relay output (SPST-NO) rated for up to 3 A at 250 VAC for direct control of heaters and switching devices.

Equipped with a clear digital display and support for both ON/OFF and PID control with auto-tuning, the E5CSV-R1T-500 provides precise temperature regulation. Additional functionality includes alarm output capability and selectable temperature units (°C/°F), with user-friendly panel buttons for setup adjustments.

📌 Key Features

• Model: Omron E5CSV-R1T-500 AC100-240 universal input temperature controller

• Supply Voltage: 100–240 VAC, 50/60 Hz

• Display: 48 × 48 mm panel mount with 7-segment indicator

• Input Types: Universal (thermocouple & Pt resistance)

• Control Output: Relay (SPST-NO), 250 VAC, 3 A resistive

• Control Modes: ON/OFF or PID with auto-tuning

• Additional Output: Alarm output SPST-NO, 1 A @ 250 VAC

• Functions: Direct/reverse operation, temperature unit switching, key protection

• Operating Temperature: -10 °C to +55 °C

A reliable and flexible choice for temperature monitoring and control, the E5CSV-R1T-500 balances ease of use with professional-grade functionality for industrial automation.
