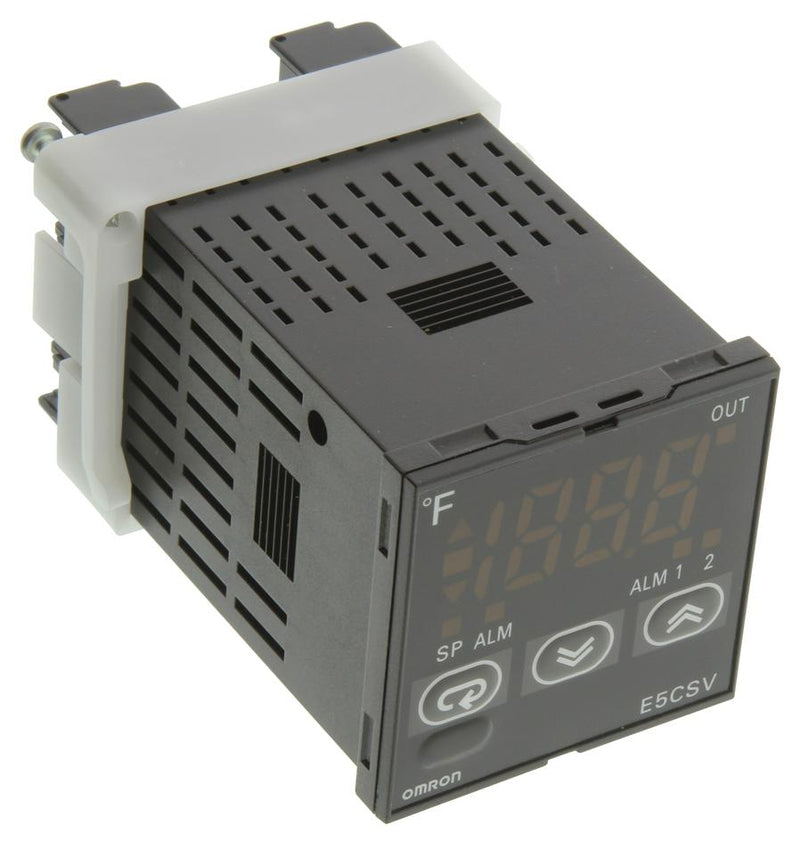

Omron E5CSV-R1TD-500 24 VAC/DC Panel-Mount Temperature Controller PID Relay Output 48×48 mm

The Omron E5CSV-R1TD-500 is a compact industrial temperature controller designed for precise thermal regulation in automation, ovens, HVAC systems, packaging equipment, and process control panels. This 1/16 DIN (48×48 mm) panel-mount unit accepts a 24 V AC/DC supply and supports universal temperature sensor inputs — including thermocouples (e.g., K, J) and Pt100 resistance thermometers — for versatile measurement capability.

Equipped with ON/OFF and fully adjustable PID control (with autotuning), the controller delivers responsive temperature regulation to maintain setpoints accurately. It features two SPST-NO relay outputs, each rated for up to 250 VAC at 3 A (resistive load), so you can control heaters, fans, or alarms directly. A clear LED display provides real-time temperature readout and setpoint status, while simple DIP switch and front-panel configuration make setup fast without complex software.

This unit supports alarm output, sensor fault detection, and °C/°F selection, enhancing safety and flexibility in demanding industrial environments. The rugged design is suitable for factory floors and control cabinets where reliable temperature regulation is essential.

📌 Key Specifications

• Model: Omron E5CSV-R1TD-500

• Supply Voltage: 24 VAC / 24 VDC (panel mount)

• Panel Size: 48×48 mm cut-out

• Universal Input: Thermocouple & Pt100/RTD support

• Control Method: ON/OFF & PID with auto-tuning

• Outputs: 2 × SPST-NO relay (250 VAC / 3 A)

• Display: LED digital indicator

• Functions: Alarm output, sensor error detection, °C/°F selection

• Mounting: Panel mount with screw terminals

• Control Range: Typically wide range for thermocouple/PT100 inputs

• Operating Temp: ~-10 °C to +55 °C

Enhance your industrial systems with this versatile controller that combines precision, flexibility, and ease of use in a compact panel package.
