PATG HF 4/30 – Conductor Marker Carrier | Phoenix Contact (1014067)

Durable identification for demanding environments.

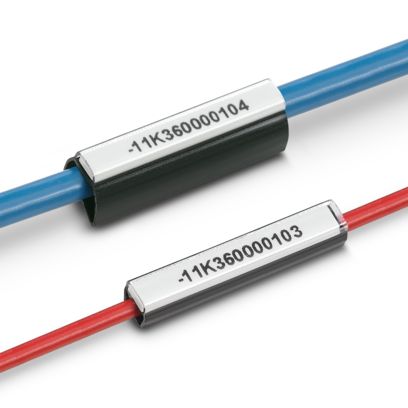

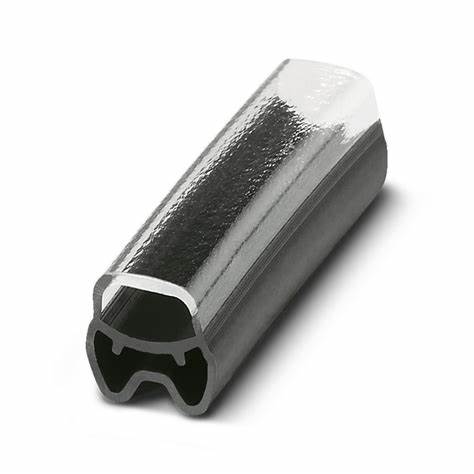

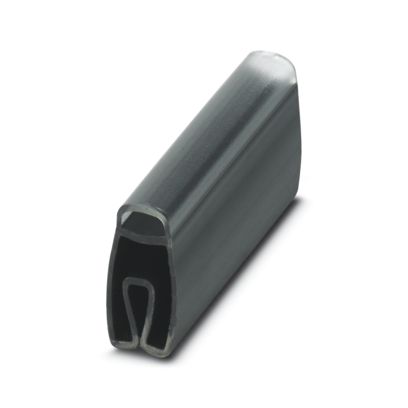

The PATG HF 4/30 is a high-performance, slide-on conductor marker carrier designed for clear labeling in industrial and rail applications. Its transparent body with black backing ensures visibility and compatibility with a wide range of cable diameters.

🔍 Key Features:

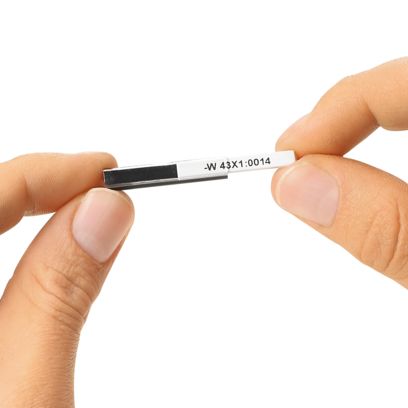

• Mounting Type: Slide-on
• Cable Diameter Range: 5 mm to 10 mm
• Text Field Size: 30 mm × 4 mm
• Color: Transparent/Black
• Material: Thermoplastic Polyurethane (TPU), halogen-free, silicone-free
• Flammability Rating: UL 94 V0
• Fire Protection:
• DIN EN 45545-2 (R22 HL1–2, R23 HL1–3, R24 HL1–3)
• VDMA 24364-A1-L compliant
• UV Resistance: Passed (96 hours)
• Temperature Resistance: Up to 100 °C (tested to ANSI/UL 969)
• Environmental Testing: Passed salt spray, sulfur dioxide, and condensation cycling tests

🌡 Ambient Conditions:

• Operating Temperature: -40 °C to +85 °C
• Recommended Storage: 23 °C / 50% RH, dry and dark in original packaging

📦 Commercial Data:

• Part Number: 1014067
• GTIN: 4046356779548
• Country of Origin: Germany
• Customs Tariff Code: 39269097
• Weight per Piece: 1.136 g
• Minimum Order Quantity: 200 pcs
• Packaging Unit: 200 pcs
• Made to Order: Yes (non-returnable)
