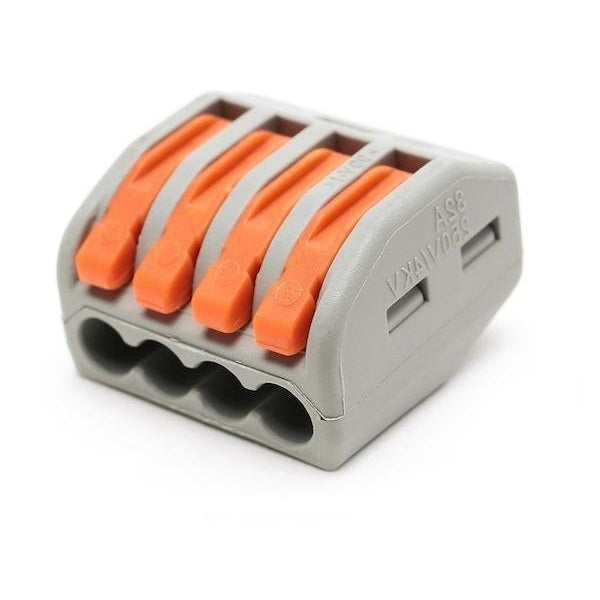

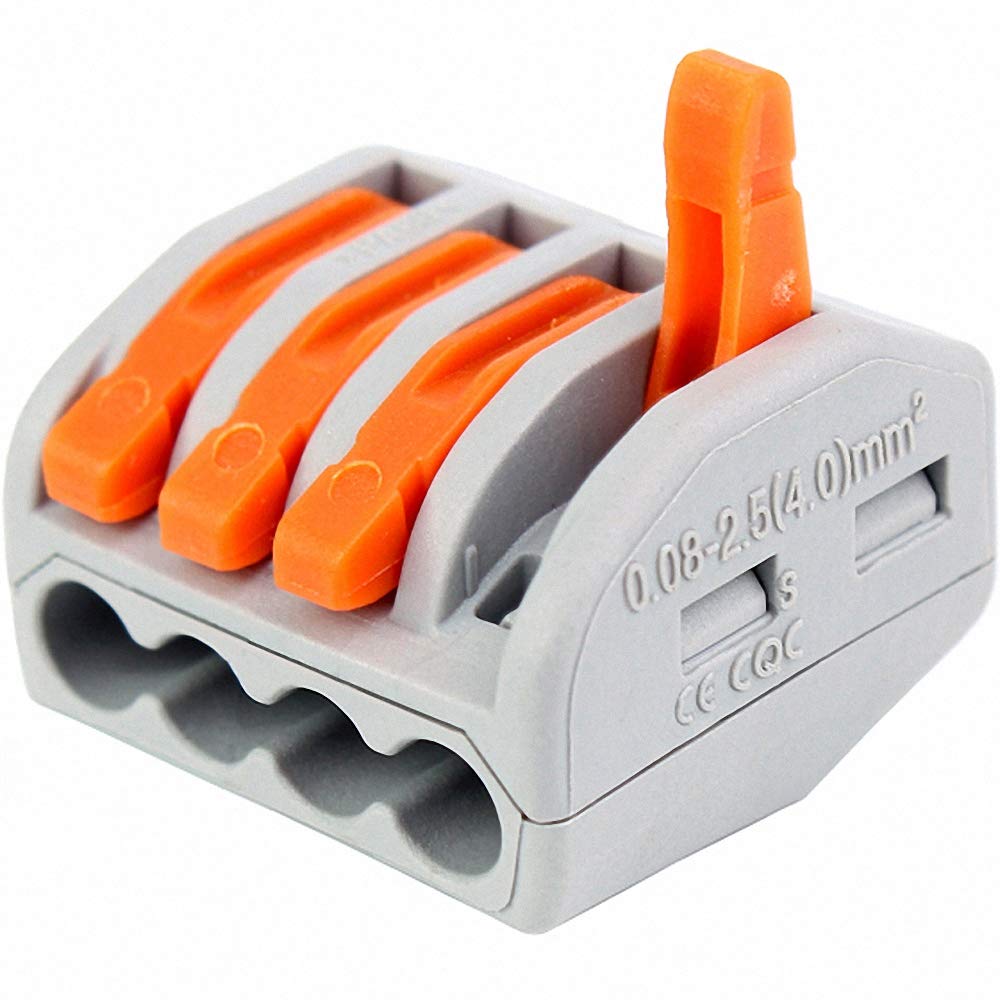

PCT-214 Quick Wire Connector – 4-Port Push-in Wiring Conductor Terminal Block (0.08–2.5mm²)

Product Description:

The PCT-214 Quick Wire Connector is a 4-port push-in terminal block engineered for fast, safe, and tool-free wire connections. Designed to connect multiple conductors neatly, it simplifies wiring in lighting systems, junction boxes, and electrical panels.

Built from flame-retardant transparent polycarbonate (PC) with high-conductivity copper contacts, this connector ensures excellent electrical performance, heat resistance, and long-term durability. The clear housing makes it easy to confirm proper wire insertion, and its compact, modular design saves space during installation.

Key Features:

• Model: PCT-214

• Type: Push-in quick wire connector (4 ports)

• Connection Type: Push-in / Tool-free

• Wire Range: 0.08–2.5mm² (AWG 28–14)

• Rated Voltage: 250V / 600V (depending on region)

• Rated Current: Up to 24A

• Material: Flame-retardant PC housing + Copper conductors

• Color: Transparent body with orange push levers

• Temperature Range: -40°C to +105°C

• Reusable: Yes – easy to open and rewire

• Certification: CE / RoHS compliant

Applications:

• Multi-wire lighting connections

• Junction and distribution boxes

• Control cabinets and panels

• Residential, commercial, and industrial wiring

• Electrical maintenance and testing projects
