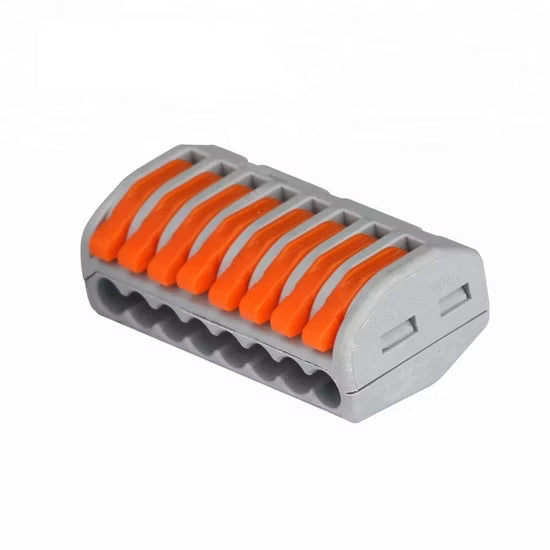

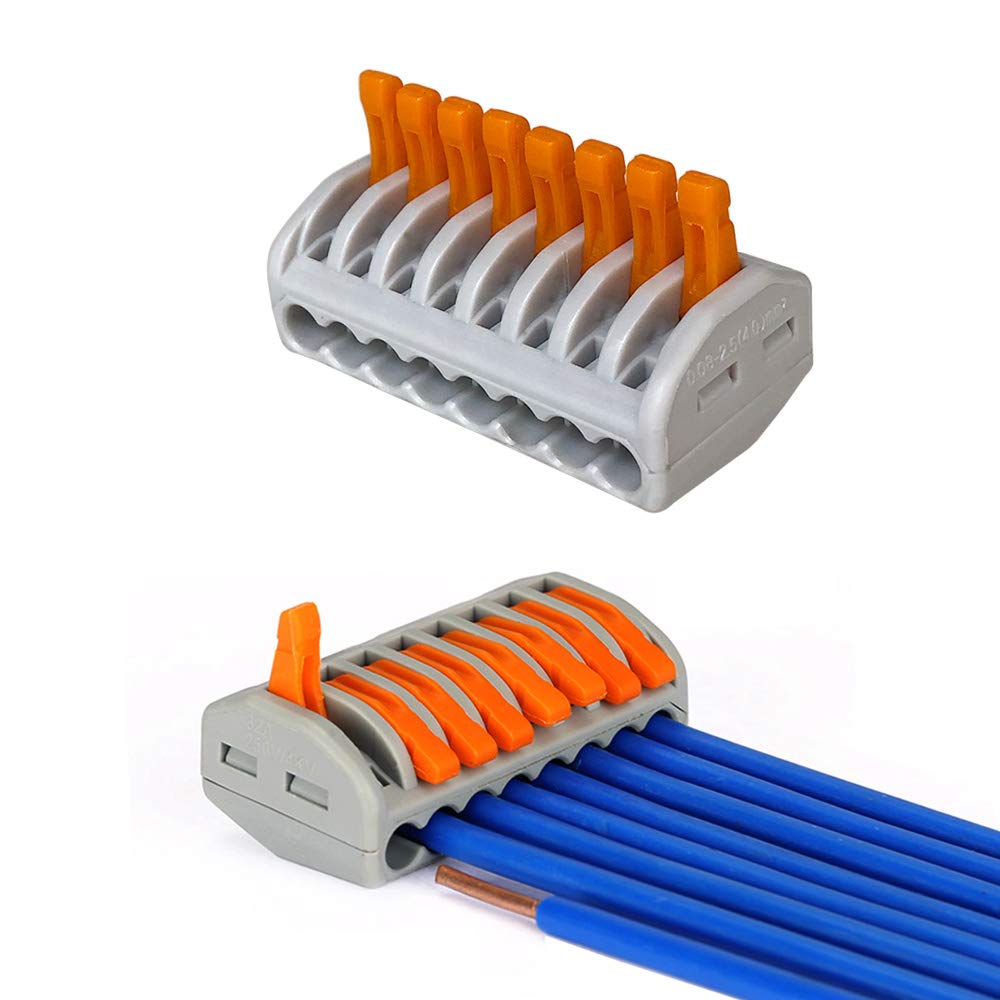

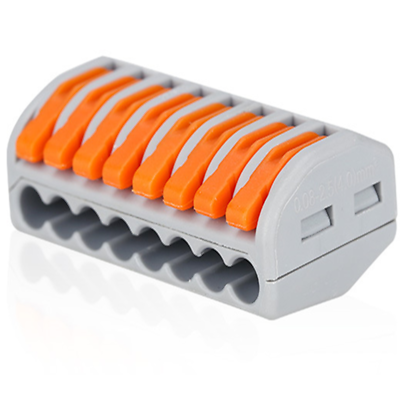

PCT-218 Quick Wire Connector – 8-Port Push-in Wiring Conductor Terminal Block (0.08–2.5mm²)

Product Description:

The PCT-218 Quick Wire Connector is a high-capacity 8-port push-in terminal block designed for fast, reliable, and tool-free electrical connections. Perfect for complex wiring systems and multi-wire junctions, this connector enables clean and organized installations in both residential and industrial applications.

Each port accepts solid or stranded copper conductors within 0.08–2.5mm² (AWG 28–14), providing excellent contact stability and electrical safety. Its transparent body allows easy visual inspection, while the flame-retardant polycarbonate housing ensures long-lasting durability and resistance to heat and impact.

Key Features:

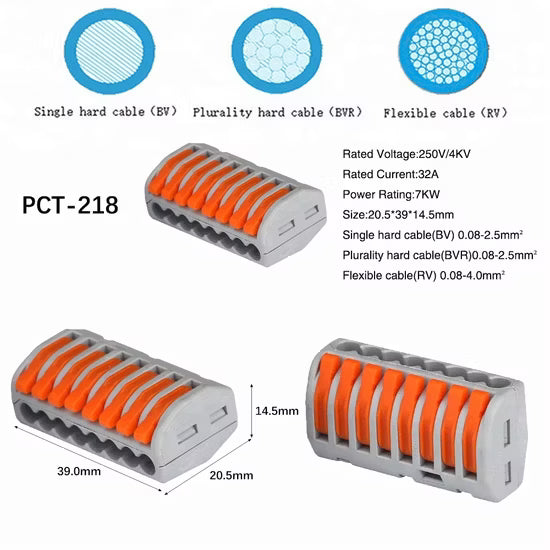

• Model: PCT-218

• Type: Push-in quick wire connector (8 ports)

• Connection Type: Push-in / Tool-free

• Wire Range: 0.08–2.5mm² (AWG 28–14)

• Rated Voltage: 250V / 600V (depending on standard)

• Rated Current: Up to 24A

• Material: Flame-retardant PC with copper conductor

• Temperature Range: -40°C to +105°C

• Color: Transparent body with orange push levers

• Reusable: Yes – can be re-opened for maintenance or rewiring

• Safety Certification: CE / RoHS compliant

Applications:

• Multi-circuit electrical connections

• Distribution boxes and control cabinets

• Ceiling lights, power sockets, and junction boxes

• Household, commercial, and industrial wiring systems

• Fast wiring in automation and lighting networks
