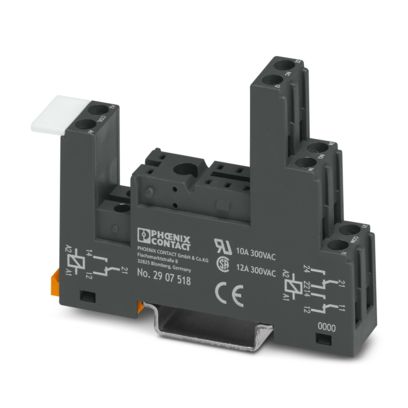

Phoenix Contact ECOR-1-BSC3/2X21 Relay Base – 250V, 12A, Screw Connection, DIN Rail Mount, Gray (2907518)

 Product Description
The Phoenix Contact ECOR-1-BSC3/2X21 (2907518) is a compact and reliable relay socket from the ESSENTIAL edition, designed for use with miniature power or switching relays featuring 1 or 2 changeover contacts. It offers a screw connection interface and supports plug-in modules for input and interference suppression.
Key Specifications:
•     ⚡ Nominal Voltage: 250 V AC/DC
•     🔌 Nominal Current: 12 A
•     🔩 Connection Method: Screw connection (M3 thread)
•     ✂️ Stripping Length: 8 mm
•     🧵 Conductor Cross-Section:
•     Rigid: 2x 0.2 mm² to 2.5 mm² (without ferrule)
•     Flexible: 2x 0.2 mm² to 2.5 mm² (without ferrule)
•     With ferrule: 2x 0.2 mm² to 1.5 mm²
•     🧱 Mounting Type: NS 35/7.5 DIN rail
•     🌡️ Operating Temp: -25 °C to +70 °C
•     ⚖️ Weight: 50.9 g
•     🌍 Country of Origin: China
•     📦 Packaging Unit: 10 pcs (minimum order)
