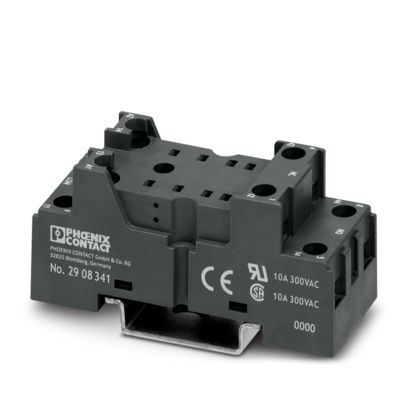

Phoenix Contact ECOR-2-BSC2-RT/2X21 Relay Base – 250V AC/DC, 12A, Bolt Connection, DIN Rail Mount (2908341)

Product Description
The Phoenix Contact ECOR-2-BSC2-RT/2X21 (2908341) is a robust relay socket designed for industrial relays with two changeover contacts, offering secure and reliable connectivity in automation and control systems. Part of the ESSENTIAL edition, this base features a bolt connection interface and is optimized for mounting on NS 35/7.5 DIN rails.
Key Features:
•     ⚡ Nominal Voltage: 250 V AC/DC
•     🔌 Nominal Current: 12 A
•     🔩 Connection Method: Bolt connection with M3 screw thread
•     ✂️ Stripping Length: 8 mm
•     🧵 Conductor Cross-Section:
•     Rigid: 2x 0.2 mm² to 2.5 mm² (without ferrule)
•     Flexible: 2x 0.2 mm² to 1.5 mm² (with ferrule)
•     🧱 Mounting Type: NS 35/7.5 DIN rail
•     🧰 Application: Ideal for relay-based switching in control panels, machinery, and process automation
•     🌍 Country of Origin: China
•     ⚖️ Weight: 40.35 g (excluding packaging)
