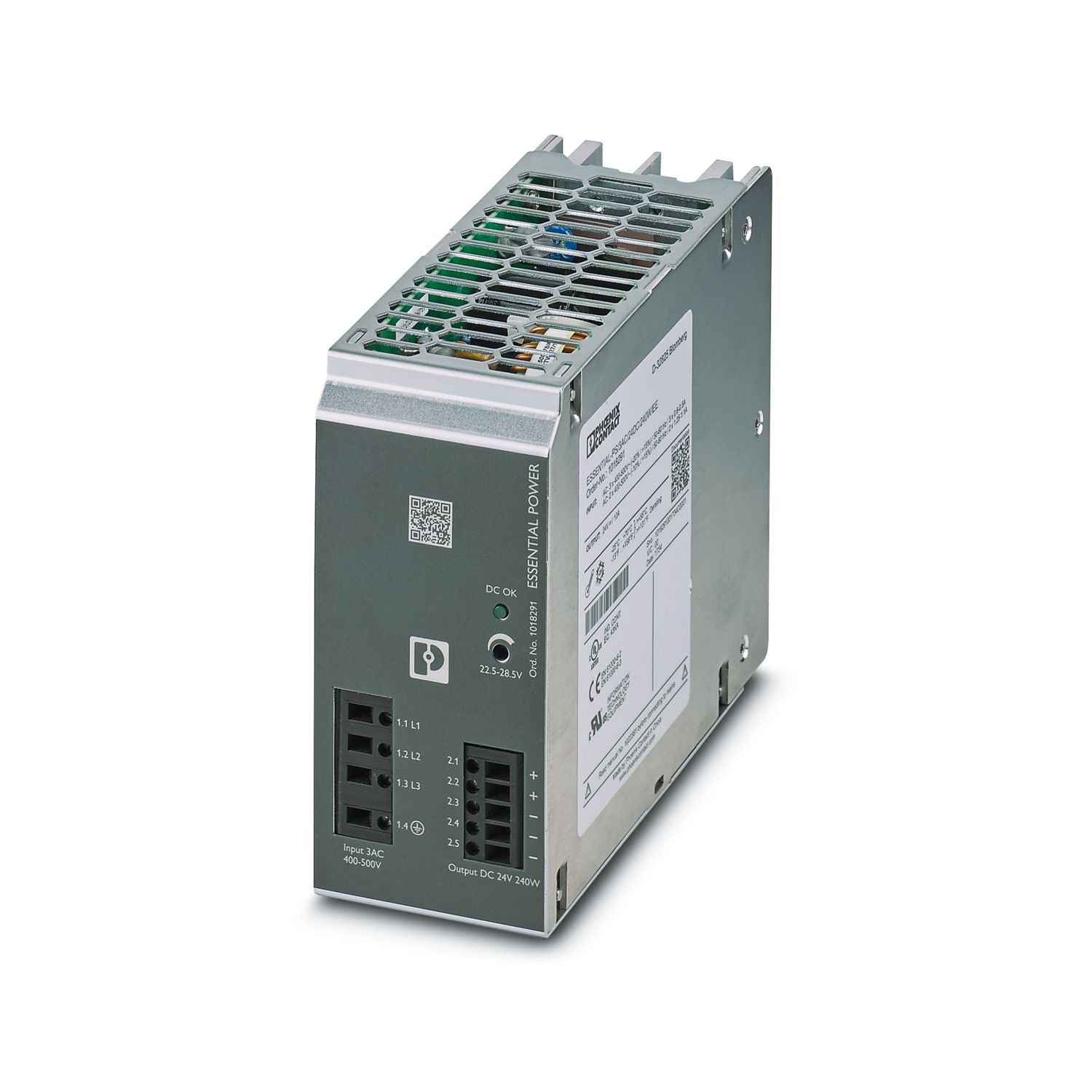

Phoenix Contact ESSENTIAL-PS/3AC/24DC/240W/EE – Three-Phase Input DIN-Rail Power Supply, 24 V DC / 240 W

Phoenix Contact ESSENTIAL-PS/3AC/24DC/240W/EE – Three-Phase Input DIN-Rail Power Supply, 24 V DC / 240 W

GH₵4,000.00
GH₵3,500.00 GH₵4,000.00
Sale Sold out

Detailed Description:
The Phoenix Contact ESSENTIAL-PS/3AC/24DC/240W/EE (article number 1018291) is a highly capable industrial power supply unit designed for three-phase mains input and a robust 24 V DC output up to 240 W. Ideal for control panels, machine tools and demanding automation systems.

Key Features & Highlights:

  • Three-phase input voltage range: nominal 400–500 V AC (2-phase/3-phase) with full input range 3× 320–575 V AC.

  • Output: 24 V DC ±1 % nominal, up to 10 A (i.e., 240 W).

  • High efficiency ~88.5 % (at 400 V AC nominal) for reduced heat and improved reliability.

  • DIN-rail mounting, compact width of 60 mm (height ~130 mm, depth ~152.5 mm).

  • Fanless convection cooled, no moving parts for quieter operation and lower maintenance.

  • Wide ambient operating temperature: –25 °C to +70 °C (with derating above 55 °C).

  • High input/output insulation, surge protection, unlimited capacitive load capability and suitability for series/parallel connection for redundancy.

  • IP20 degree of protection and industrial-rated approvals (UL/C-UL, CSA etc).

Technical Specifications:

Parameter Value
Input voltage (nominal) 2×/3× 400-500 V AC
Input voltage (operational range) 3× 320-575 V AC (2-phase 360-575 V AC)
Input frequency 45-65 Hz
Output voltage 24 V DC ±1%
Output current 10 A (at 24 V DC)
Output power 240 W
Efficiency ~88.5% (at 400 V AC nominal)
Dimensions (W × H × D) 60 mm × ~130 mm × ~152.5 mm
Mounting DIN-rail mounting
Protection Degree IP20
Ambient operating temperature –25 °C … +70 °C (derating >55 °C)

Applications & Use-Cases:
This power supply is perfect for industrial automation systems requiring a stable 24 V DC feed from a three-phase source — such as machine building, process control, infrastructure panels, railway installations, e-mobility systems and more. Its three-phase input capability makes it a strong choice where heavy mains loads or shared supply lines are used.

Why choose this unit?

  • Enables global three-phase installations with wide input range.

  • Compact width aids in space-constrained control cabinets.

  • Fanless and low-maintenance design ensures reliable long-term operation.

  • High efficiency and robust specs make it suitable for critical infrastructure.

  • Built by Phoenix Contact — a trusted brand in industrial power supplies.
