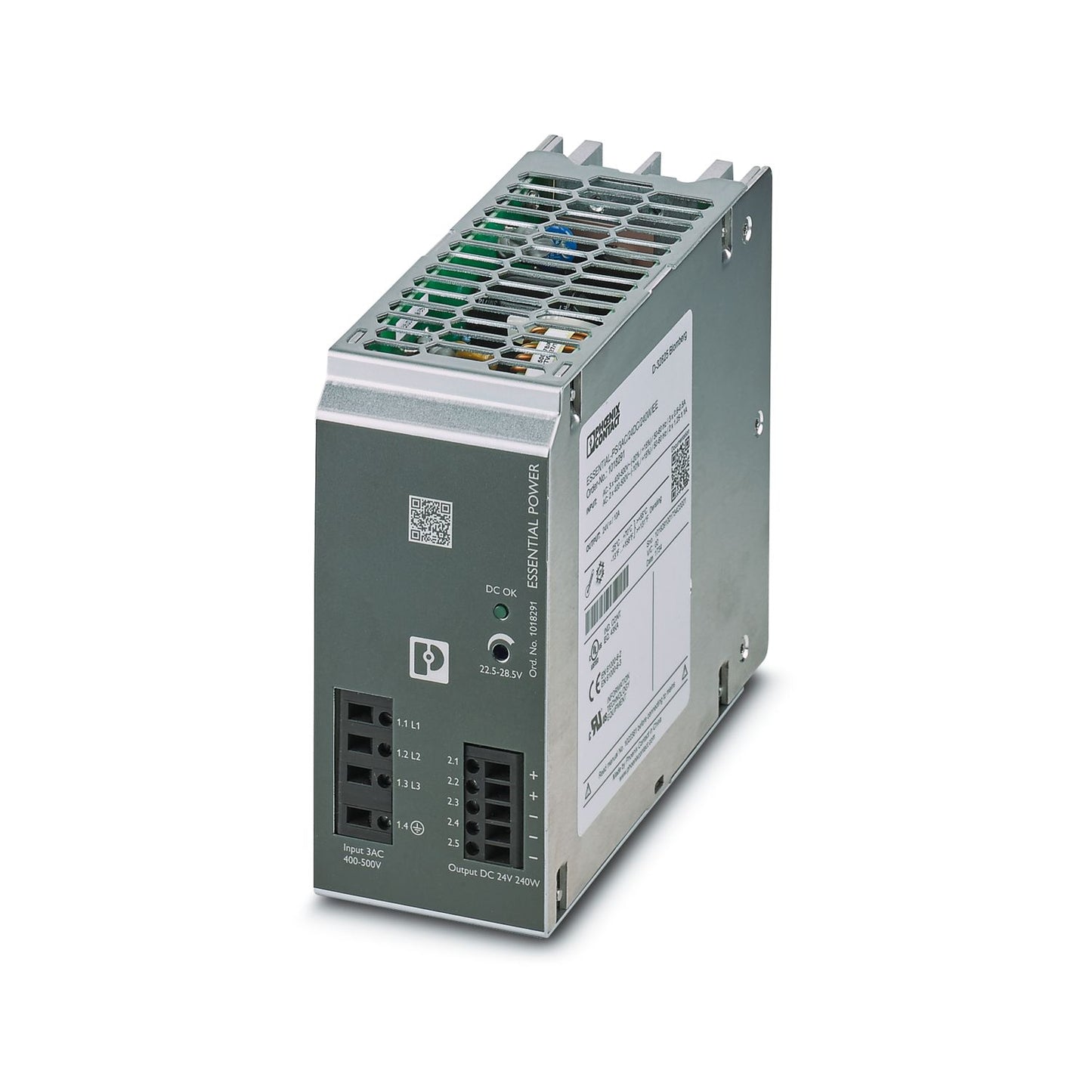

Phoenix Contact ESSENTIAL-PS/3AC/24DC/240W/EE – Three-Phase Input DIN-Rail Power Supply, 24 V DC / 240 W

Phoenix Contact ESSENTIAL-PS/3AC/24DC/240W/EE – Three-Phase Input DIN-Rail Power Supply, 24 V DC / 240 W

GH₵4,000.00
GH₵3,250.00 GH₵4,000.00
Sale Sold out

Detailed Description:
The Phoenix Contact ESSENTIAL-PS/3AC/24DC/240W/EE (part number 1018291) is a three-phase AC input industrial switching power supply in the ESSENTIAL POWER series, designed for DIN-rail mounting in control cabinets and automation panels. This unit delivers a steady 24 V DC output at 240 W (nominal) and supports heavy-duty industrial loads while offering compact installation.

Key Features & Highlights:

  • Three-phase input voltage range: 2×/3× 400 V AC … 500 V AC nominal, full range 3× 320 V AC … 575 V AC.

  • Output: 24 V DC ±1% nominal, nominal output current 10 A (for 240 W) at 24 V nominal.

  • High efficiency ~88.5% at 400 V AC input nominal.

  • DIN-rail mountable (NS35/7.5), width ~60 mm, height ~130 mm, depth ~152.5 mm.

  • Fanless convection cooling, for improved reliability and lower maintenance.

  • Designed for industrial ambient conditions: operating temperature –25 °C to +70 °C (with derating above ~55 °C)

  • Outputs include LED status indicator “DC OK” and screw-terminal connections.

  • Short-circuit proof, unlimited capacitive load capability, and designed for series/parallel connection if required.

Technical Specifications:

Parameter Value
Item Number 1018291
Nominal Input Voltage 2×/3× 400 V AC … 500 V AC nominal
Input Voltage Range 3× 320 V AC … 575 V AC (also 2× 360 V … 575 V AC for 2-phase)
Output Voltage 24 V DC ±1%
Nominal Output Current 10 A
Output Power (Nominal) 240 W
Efficiency ~88.5% at 400 V AC input nominal
Dimensions (W × H × D) ~60 mm × 130 mm × 152.5 mm
Ambient Operating Temperature –25 °C … +70 °C (with derating above ~55 °C)
Protection / IP Rating IP20

Applications & Use-Cases:
This power supply is ideal for industrial automation systems that utilise three-phase mains input and require a stable 24 V DC output — such as control panels, machine tools, infrastructure installations, and other heavy-duty equipment. Its three-phase input capability makes it well suited for installations with higher power availability or where three-phase supply is standard.

Why choose this unit?

  • Enables three-phase installations with wide input range and global compatibility.

  • Compact DIN-rail format for ease of mounting in control cabinets.

  • Fanless design for low-maintenance, quiet operation and long life.

  • Strong brand reliability from Phoenix Contact in industrial power supplies.

View full details
