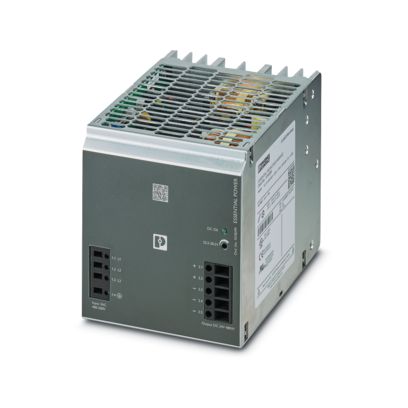

Phoenix Contact ESSENTIAL-PS/3AC/24DC/480W/EE (24 V DC / 480 W) – 3-Phase DIN-Rail Power Supply

Phoenix Contact ESSENTIAL-PS/3AC/24DC/480W/EE (24 V DC / 480 W) – 3-Phase DIN-Rail Power Supply

GH₵5,550.00
GH₵6,250.00 GH₵5,550.00
Sale Sold out

Detailed Description:
The Phoenix Contact ESSENTIAL-PS/3AC/24DC/480W/EE (Part No. 1018299) is an industrial-grade DIN-rail mounted power supply engineered for three-phase input systems and a robust 24 V DC output at up to 480 W. This high-performance unit supports demanding automation, control panel and machinery applications in industrial environments.

Key Features:

  • Three-phase AC input: 3×320 V-575 V AC (nominal 3×400–500 V AC) — full global compatibility.

  • Output: 24 V DC nominal, up to 20 A (≈ 480 W output).

  • Adjustable output range: 22.5 V … 29.5 V (within constant-capacity constraints).

  • Industrial protections: IP20 rating; ambient operating temperature from -25 °C up to +70 °C (with derating above ~55 °C).

  • High efficiency (≈ 91% at nominal conditions) for reduced heat and reliable operation.

  • Compact DIN-rail mounting simplifies installation and maintenance in control enclosures.

Technical Specification Table:

Parameter Specification
Item Number 1018299
Input Voltage (nominal) 3×400–500 V AC
Input Voltage Range 3×320–575 V AC (also 2×360–575 V AC)
Output Voltage 24 V DC ±1%
Output Current (Nominal) 20 A (up to 480 W)
Output Power 480 W nominal
Output Voltage Setting 22.5–29.5 V DC
Ambient Temperature -25 °C … +70 °C (derating above ~55 °C)
Degree of Protection IP20
Dimensions (approx) Width ~115 mm × Height ~130 mm × Depth ~152.5 mm

Applications & Use-Cases:
Ideal in industrial plants where a three-phase supply is standard and a stable 24 V DC rail is required for control systems, automation equipment, drive supplies, or large sensor/actuator arrays. Its high power rating and robust design make it suitable for demanding environments.

Why Choose This Unit?

  • Enables industrial three-phase installations with a single reliable module.

  • High efficiency and robust protections enhance system reliability.

  • Trusted brand with global approval and wide-input compatibility.

  • DIN-rail format reduces panel complexity and simplifies maintenance.
