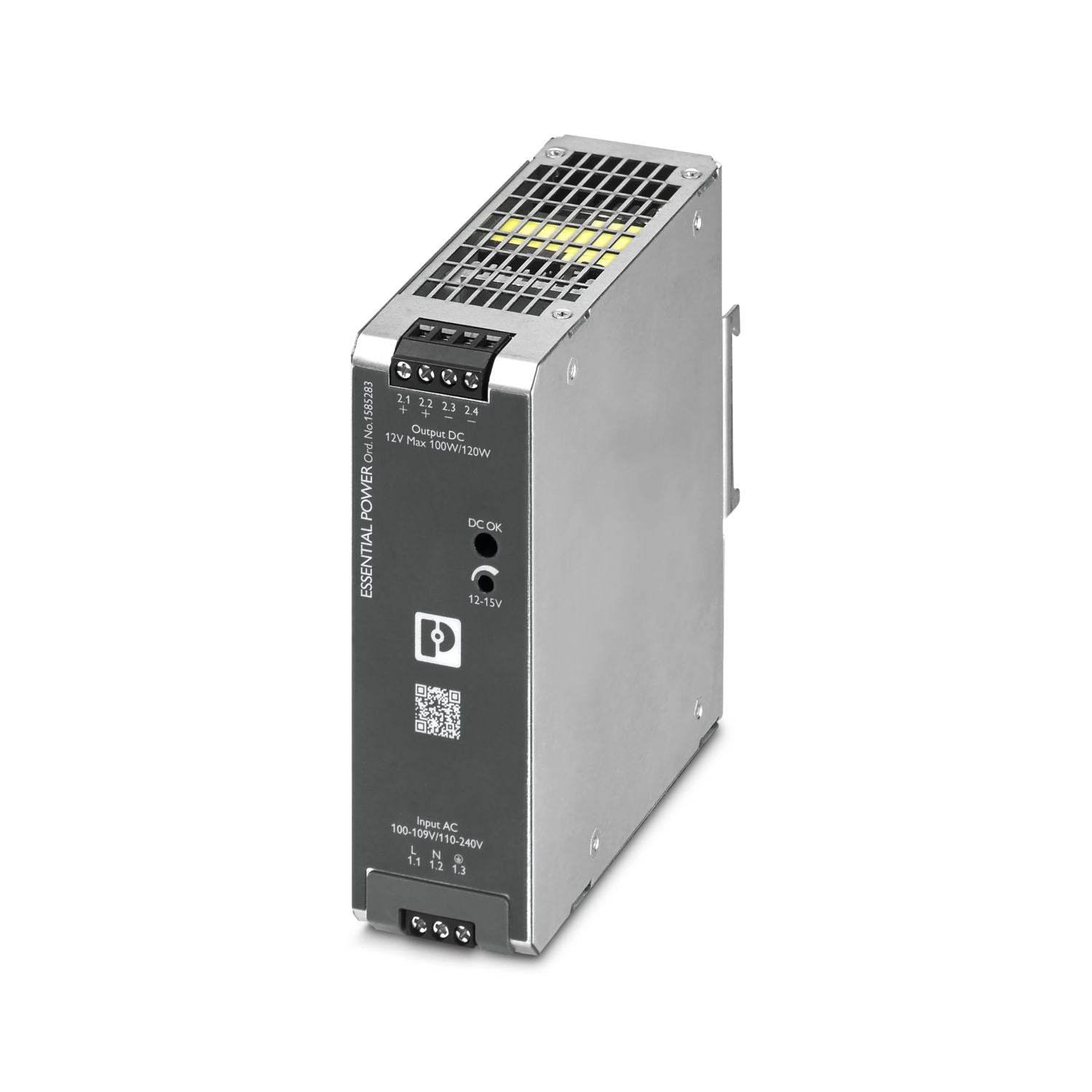

Phoenix Contact PS-EE-2G/1AC/12DC/120W/SC – DIN Rail Power Supply, 12 V DC, 10 A, 120 W (Part No. 1585283)

Product Overview:

The Phoenix Contact PS-EE-2G/1AC/12DC/120W/SC is a high-performance, compact DIN rail-mounted power supply that provides a reliable 12 V DC output at 10 A, delivering up to 120 W of power. With its wide-range 100–240 V AC input, high efficiency, and long service life, this power supply is built for demanding industrial automation and control applications.

It’s part of Phoenix Contact’s Energy Efficient (EE) series, designed for optimal power conversion, space-saving installation, and operational safety in control panels and electrical systems.

Key Features:

• 12 V DC Output @ 10 A (120 W)
  Provides a stable power source for industrial devices like sensors, relays, PLCs, and HMIs.

• Wide Input Range (100–240 V AC)
  Ensures flexibility and compatibility in global power environments.

• High Efficiency (>91%)
  Minimizes energy loss and keeps panels cool with low heat generation.

• DIN Rail Mounting
  Quick and secure installation into any standard 35 mm DIN rail system.

• Robust Protection Functions
  Integrated protection against overvoltage, overload, short circuit, and overheating.

• Diagnostics Ready
  Status LED and optional signal contact allow real-time monitoring and system feedback.

Technical Specifications

Applications:

• Factory automation systems

• Process control and instrumentation

• PLC and SCADA panel power supply

• Low-voltage lighting and relay circuits

• Distributed I/O and communication modules
