Phoenix Contact PS-EE-2G/1AC/24DC/120W/SC – DIN-Rail Power Supply Unit 24 V DC / 120 W (Single-Phase Input)

Detailed Description:
The Phoenix Contact PS-EE-2G/1AC/24DC/120W/SC (part number 1234302) is a reliable DIN-rail mounted switching power supply from the ESSENTIAL POWER series, engineered for industrial control cabinets, automation panels and machine-tool environments. It accepts a single-phase AC input and delivers a steady 24 V DC output up to 120 W (5 A nominal) with adjustable output voltage (24-28 V DC).

Key Features:

• Single-phase input: 100 V AC … 240 V AC nominal.

• Output: 24 V DC nominal, adjustable up to ~28 V.

• Nominal output current up to 5 A (120 W) at nominal voltage.

• High efficiency: ~87 % at 120 V AC, ~88 % at 230 V AC.

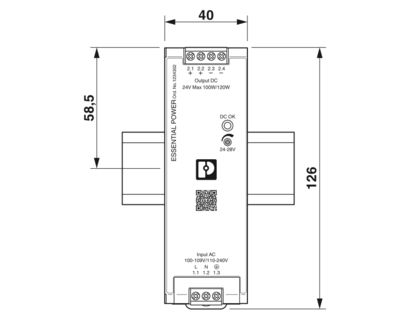

• DIN-rail (NS 35/7.5) mounting, compact width ~40 mm.

• Screw-terminal connections for both input and output; wide ambient operating range –20 °C to +70 °C (with derating).

• Designed for industrial installations, providing short-circuit and no-load proof operation.

Technical Specification Table:

Applications & Use Cases:
Ideal for use in control cabinets, machine control systems, sensor/actuator supply rails, automation modules, and other industrial environments where a dependable 24 V DC supply is required. Its compact footprint and industrial grade specifications make it well-suited for installations with limited space and demanding use-cases.

Why Choose This Model?

• Balanced power rating (120 W) for moderate to heavy 24 V loads.

• Broad input voltage range supports deployment in varied global regions.

• Robust industrial design with high efficiency and reliable protections.

• Trusted manufacturer (Phoenix Contact) and proven series (Essential Power).
