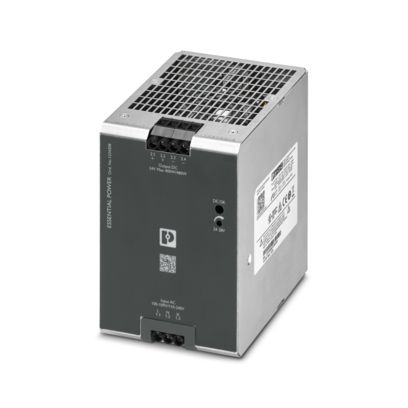

Phoenix Contact PS-EE-2G/1AC/24DC/480W/SC – DIN-Rail Power Supply Unit 24 V DC / 480 W (Single-Phase Input)

Detailed Description:
The Phoenix Contact PS-EE-2G/1AC/24DC/480W/SC (part number 1234308) is a high-capacity, DIN-rail mountable switching power supply from the ESSENTIAL POWER series. It is designed for single-phase AC input and provides a stable 24 V DC output, up to 480 W (20 A) nominal, making it ideal for robust industrial installations, control cabinets, automation panels and machine-tool environments.

Key Features:

• Input: 1-phase, 100–240 V AC nominal range (110–240 V AC ±10% for full 480 W)

• Output: 24 V DC nominal, adjustable to ~28 V DC when load permits

• Output current up to 20 A (for 480 W)

• Efficiency: approx. 91% at 120 V AC, 93% at 230 V AC

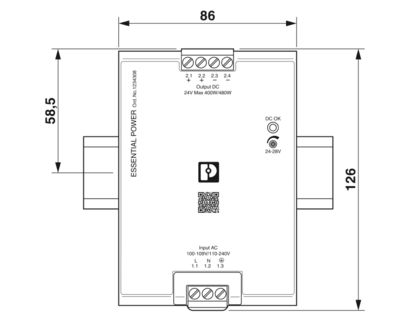

• Compact DIN-rail form: width ~86 mm, height ~124 mm, depth ~125 mm

• Industrial protections: short-circuit proof, no-load proof, supports series/parallel connection for redundancy

• Ambient operating temperature -20 °C to +70 °C (with derating above 45 °C)

Technical Specification Table:

Applications & Use-Cases:
This unit is an excellent choice when you need a high-power 24 V DC rail from a compact DIN-rail power supply. Ideal for control panels, automation equipment, large sensor/actuator banks, and other industrial systems where reliability and space efficiency matter.
