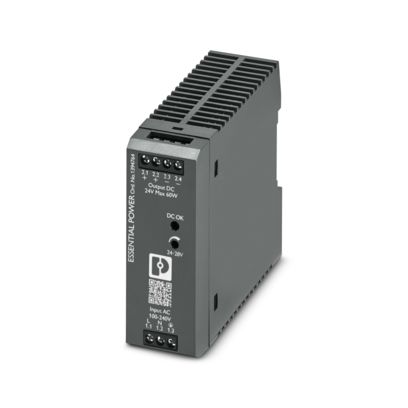

Phoenix Contact PS-EE-2G/1AC/24DC/60W/SC – DIN Rail Power Supply 24 V DC / 60 W (Single-Phase Input)

Detailed Description:
This DIN-rail mountable power supply from Phoenix Contact — model PS-EE-2G/1AC/24DC/60W/SC (Item 1394764) — is part of the ESSENTIAL POWER series, designed for cost-effective, reliable 24 V DC supply in industrial and commercial control cabinets. Suitable for single-phase mains (100-240 V AC) input, the unit delivers up to 60 W output, making it ideal for smaller loads, terminal blocks, sensors, controllers and auxiliary systems.

Key Features:

• Wide input voltage range: 100-240 V AC (-15 % / +10 %) for flexible global use.

• Output: 24 V DC nominal, adjustable from 24 V to 28 V.

• Maximum output current: 2.5 A (60 W nominal) under nominal conditions.

• Compact width (≈33 mm) for space-saving installation on DIN rails.

• Screw terminal connection, DIN-rail mounting in NS35/7.5 format.

• Protection rating: IP20. Ambient operating temperature: –20 °C to +70 °C (with derating above 45 °C).

• Conforms to commercial/industrial requirements with global approvals (cULus, CB-scheme) and efficient performance (~88-89% efficiency) for reduced heat.

Technical Specification Table:

Applications & Use-Cases:
This unit is an excellent choice for smaller control cabinets, auxiliary supply for machine sub-systems, sensor networks, automation modules, building-automation panels, and any system requiring a stable 24 V DC feed at moderate current. Its narrow width helps conserve panel space, while the global input range supports deployment in varied geographic regions.

Why Choose This Model?

• Compact size for space-constrained installations.

• Reliable 24 V output with industrial quality despite being in the “essential” (cost-sensitive) class.

• Wide input voltage range supports global mains compatibility.

• Screw-terminal and DIN-rail mounting ease installation and maintenance.

• High efficiency reduces heat generation and improves longevity.
