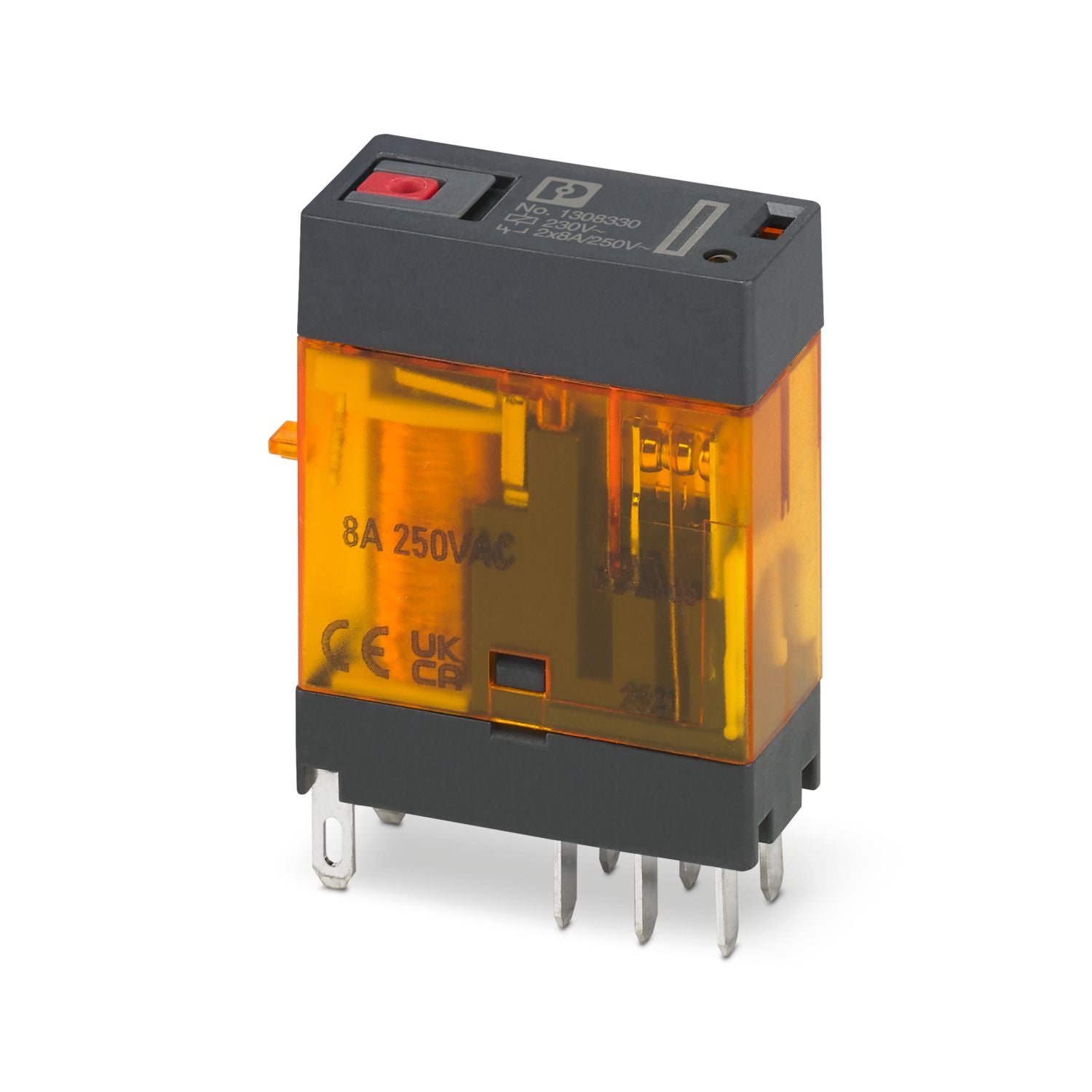

Phoenix Contact REL-FO/LRC-230AC/2 × 21/MS – Plug-in Miniature Electromechanical Relay, 230 V AC Coil, 2 Change-over Contacts

Detailed Description:
The Phoenix Contact REL-FO/LRC-230AC/2X21/MS (order code 1308330) is a compact plug-in miniature electromechanical relay from the “ESSENTIAL edition” range. It features a 230 V AC nominal coil voltage with RC suppression, two change-over (DPDT) contacts (2×21), FASTON connection style, mechanical switch-position indicator, and a yellow LED status indicator.

Key Features:

• Nominal coil voltage: 230 V AC.

• Input voltage range: approx. 184-253 V AC at 20 °C for nominal coil operation.

• Two change-over contacts (2 × 21) with contact material AgSnO.

• Compact dimensions, FASTON connection, designed for DIN-rail or modular control-panel integration.

• Approximate mechanical service life: ~3×10⁷ cycles.

• Rated insulation voltage: 250 V AC; rated surge voltage approx. 2.5 kV.

Technical Specification Table:

Applications & Use-Cases:
This relay is ideal for industrial automation systems, control cabinets, modular interface blocks, signal switching, and load switching where a 230 V AC control coil is used. The compact form factor, plug-in design and status indicators aid quick installation and maintenance.

Why Choose This Model?

• Reliable 230 V AC coil makes it suited for AC-controlled systems commonly found in industrial environments.

• Compact, modular plug-in design with FASTON connection allows high-density panel layouts and easy service-replacement.

• Built by Phoenix Contact in the ESSENTIAL edition — offering industrial-grade performance at effective cost.
