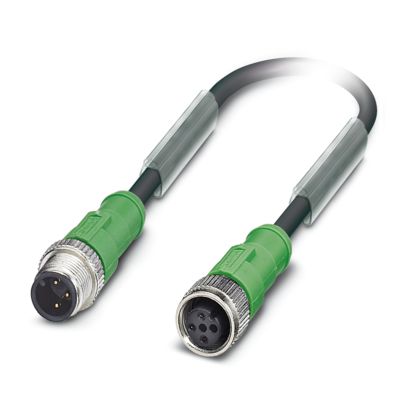

Phoenix Contact SAC-3P-M12MS/1,0-PUR/M12FS M12 Signal Cable 3-Pin A-Coding 1m Plug to Socket

Phoenix Contact SAC-3P-M12MS/1,0-PUR/M12FS – M12 Signal Cable, 3-Pin, A-Coding, 1m

Pre-assembled M12 sensor/actuator signal cable with a straight M12 plug (A-coding) on one end and a straight M12 socket (A-coding) on the other. The 1m black PUR halogen-free cable is rated for 250V AC/DC and 4A — ideal for daisy-chaining sensors, actuators, and I/O devices in industrial automation environments.

Key Features

• 3-position M12 straight plug (A-coding) → 3-position M12 straight socket (A-coding)
• Cable length: 1 m | Unshielded
• PUR halogen-free black cable | UL AWM Style 20549
• UL94 HB flammability | Overvoltage category III | Degree of pollution 3
• ≥100 insertion/withdrawal cycles

Electrical Properties

• Insulation resistance: ≥100 MΩ
• Nominal voltage (Uₙ): 250 V AC / 250 V DC
• Nominal current (Iₙ): 4 A

Cable / Line Properties

• Number of positions: 3 | Shielded: No
• Cable type: PUR halogen-free black [PUR]
• Conductor structure signal line: 42 × 0.10 mm
• AWG signal line: 22
• Conductor cross-section: 3 × 0.34 mm² (Signal line)
• Wire diameter incl. insulation: 1.27 mm ±0.02 mm
• External cable diameter: 3.85 mm ±0.15 mm
• Cable weight: 23 kg/km

Connector Details

• Connection 1: Plug straight M12, 3-position, coding A
• Connection 2: Socket straight M12, 3-position, coding A
• Tightening torque: 0.4 Nm (M12 connector)
• Status display: No | Status display present: No

Material Specifications

• Flammability rating: UL 94 HB
• Seal material: NBR
• Material of grip body: TPU, hardly inflammable, self-extinguishing
• Contact material: CuSn | Contact surface: Ni/Au
• Contact carrier material: TPU GF
• Material for screw connection: Zinc die-cast, nickel-plated

Part No.: 1698084 | List price: €22.33 excl. VAT
