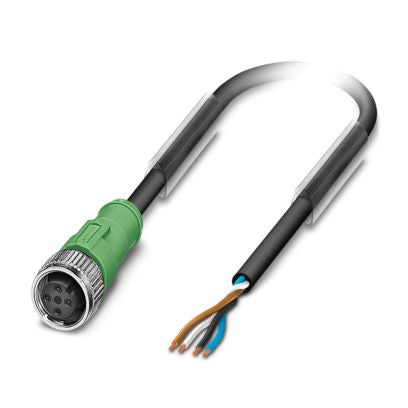

Phoenix Contact SAC-4P-2,0-PUR/M12FS – 4-Pole Sensor/Actuator Cable, M12 A-Coded Female Socket, Free Cable End, PUR Halogen-Free, 2 m

Phoenix Contact SAC-4P-2,0-PUR/M12FS – 4-Pole Sensor/Actuator Cable, M12 A-Coded Female Socket, Free Cable End, PUR Halogen-Free, 2 m

GH₵350.00
GH₵400.00 GH₵350.00
Sale Sold out

Detailed Description:
The SAC-4P-2,0-PUR/M12FS (item number 1533576) is a high-quality industrial sensor/actuator cable certified for demanding environments. It features a 4-pole (4-position) M12 A-coded female socket on one end and free cable end on the other, with a 2 m cable length. The cable uses halogen-free polyurethane (PUR) jacket in black-gray (RAL 7021), offering excellent mechanical toughness, oil and chemical resistance, and suitability for flexible applications including drag-chains.

Key Features & Highlights:

  • 4 positions, A-coded M12 socket to standard sensor/actuator interface.

  • Cable length: 2 m.

  • Conductor cross-section: 4 × 0.34 mm² (AWG 22) signal wires.

  • Rated voltage up to 250 V AC / 250 V DC.

  • Rated current: 4 A at 40 °C.

  • Cable jacket: halogen-free PUR, black-gray (RAL 7021).

  • Outside diameter approx. 4.20 mm ±0.15.

  • Designed for flexible use; dynamic bending cycles up to 10 million, torsion ±180°/m with ≥2,000,000 cycles.

  • Operating temperature: fixed installation –40 °C … +80 °C; flexible installation –25 °C … +80 °C.

  • Protection rating: IP65 / IP67 / IP68 (when properly mated) for the connector end.

  • Unshielded cable (no internal shield).

Technical Specification Table:

Parameter Specification
Item Number 1533576
Cable Type Sensor/Actuator Cable
Number of Positions 4
Connector 1 Socket straight M12, A-coded
Cable Length 2 m
Conductor Cross-Section 4 × 0.34 mm² (AWG 22)
Rated Voltage 250 V AC / 250 V DC
Rated Current 4 A (at 40 °C)
Jacket Material Halogen-free PUR
External Diameter ~4.20 mm ±0.15
Temperature (static) –40 °C … +80 °C (fixed installation)
Temperature (flexible) –25 °C … +80 °C
Protection Rating IP65 / IP67 / IP68
Shielding None

Applications & Use-Cases:
Ideal for connecting sensors and actuators in industrial automation systems, particularly in machine-building, conveyor systems, robotics, or factory control cabinets. Its durable PUR jacket and compact diameter make it suitable for environments with mechanical movement, tight space, or chemical exposure. The standard M12 interface ensures compatibility with a wide variety of sensor/actuator devices.

Why Choose This Cable?

  • High-durability, flexible cable for industrial use (drag-chain capable, torsion resistant).

  • Standard M12 A-coded connector ensures broad compatibility with automation components.

  • Halogen-free material supports safe installation in challenging or regulated environments.

  • Compact external diameter allows for space-efficient routing, while still offering robust current and voltage handling.
