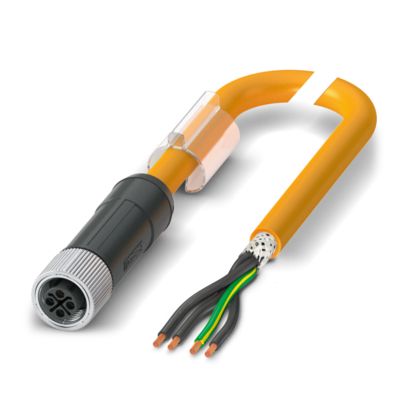

Phoenix Contact SAC-4P-3,0-PUR-M12FSS-PE-SH M12 Power Cable 4-Pin S-Coding 3m Shielded

Phoenix Contact SAC-4P-3,0-PUR-M12FSS-PE-SH – M12 Power Cable, 4-Pin, S-Coding, 3m, Shielded

Pre-assembled M12 power cable for energy supply applications. Features a straight M12 socket (S-coding, 5-coding/Power) on one end and a free cable end on the other, with a halogen-free orange PUR outer sheath rated for 690V AC and 12A. Ideal for direct connection of drives, motors, and power devices in industrial environments requiring shielded, flexible cabling.

Key Features

• 4-position M12 straight socket, coding S (Power) — energy supply application
• Connection 1: Free cable end | Connection 2: Socket straight M12, coding S (Power)
• Cable length: 3 m | Shielded: Yes
• PUR halogen-free orange shielded outer sheath
• UL94 V0 flammability | Overvoltage category III | Degree of pollution 3
• >100 insertion/withdrawal cycles

Electrical Properties

• Insulation resistance: ≥100 MΩ
• Nominal voltage (Uₙ): 690 V AC
• Nominal current (Iₙ): 12 A
• Nominal voltage, cable: 1000 V AC
• Test voltage: ≥10000 V AC (Spark test)
• Max. conductor resistance: ≤14.1 Ω/km (at 20°C)
• Insulation resistance (cable): ≥1 GΩ·km (at 20°C)

Cable / Line Properties

• UL AWM Style: 80°C / 1000 V
• Number of positions: 4 | Shielded: Yes
• Outer sheath material: PUR | External sheath color: Orange RAL 2003
• Conductor material: Bare Cu litz wires
• Material wire insulation: PP
• Single wire colors: Black 1, Black 2, Black 3, Green/Yellow
• Thickness, insulation: 0.36 mm | Thickness, outer sheath: 0.90 mm
• Overall twist: 4 wires optimally twisted

Dynamic Load Capacity

• Bending: Max. 5,000,000 cycles | Bending radius: 10 × D | Traversing path: 10 m | Rate: 3 m/s | Acceleration: 10 m/s²
• Torsion: ±180°/m | Torsion cycles: ≥500,000 | Torsional frequency: 35 cycles/min
• Min. bending radius (fixed): 5 × D | Min. bending radius (flexible): 10 × D

Material Specifications

• Flammability rating: UL 94 V0
• Material of grip body: PP
• Contact material: CuZn | Contact surface: Ni/Au
• Contact carrier material: PA
• Material for screw connection: Zinc die-cast, nickel-plated
• Halogen-free: Yes, in accordance with DIN VDE 0472 part 815
• Flame resistance: DIN EN 60332-2-2 (20s) | UL 1581, FT2

Part No.: 1424097 | List price: €73.08 excl. VAT
