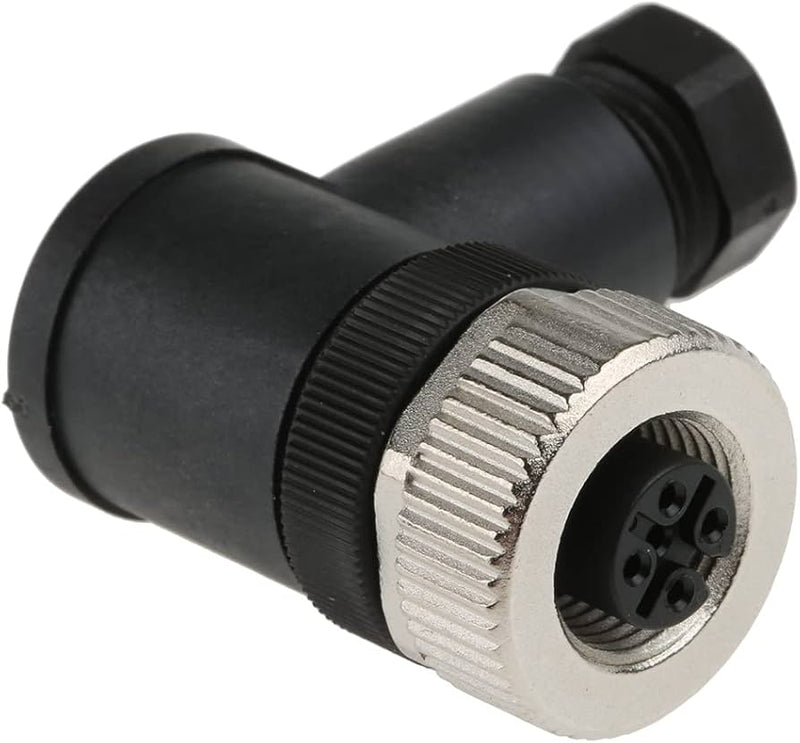

Phoenix Contact SACC-M12FR-4CON-PG7-M M12 Angled Socket Connector 4-Pin
SKU: SACC-M12FR-4CON-PG7-M
Phoenix Contact SACC-M12FR-4CON-PG7-M – M12 Angled Socket Connector, 4-Pin
Universal M12 circular connector (cable-side socket) with angled cable outlet and screw connection. Ideal for industrial automation, sensor/actuator wiring, and panel building applications requiring reliable fie...
In Stock
GH₵250.00
Phoenix Contact SACC-M12FR-4CON-PG7-M – M12 Angled Socket Connector, 4-Pin
Universal M12 circular connector (cable-side socket) with angled cable outlet and screw connection. Ideal for industrial automation, sensor/actuator wiring, and panel building applications requiring reliable field-wireable connections.
Key Features
- 4-position M12 socket, coding A
- Angled cable outlet with PG7 screw gland (cable diameter 4–6 mm)
- Screw connection with CuZn contacts, CuSnZn surface
- Unshielded; ≥50 insertion/withdrawal cycles
- Overvoltage category II, Degree of pollution 3
Material Specifications
- Grip body & contact carrier: PA
- Seal material: NBR
- Contact material: CuZn (surface: CuSnZn)
- Screw connection: Zinc die-cast, nickel-plated
- Flammability rating: UL 94 HB
Dimensions
- Length: 35 mm | Width: 41 mm | Thread: M12
Part No.: 1681143
