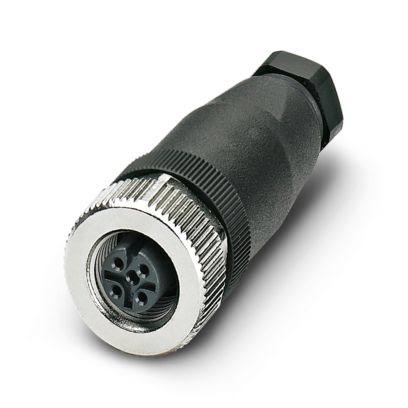

Phoenix Contact SACC-M12FS-4CON-PG7-M M12 Straight Socket Connector 4-Pin

Phoenix Contact SACC-M12FS-4CON-PG7-M – M12 Straight Socket Connector, 4-Pin

Universal M12 circular connector (cable-side socket) with straight cable outlet and screw connection. Designed for industrial automation, sensor/actuator wiring, and panel building applications requiring reliable field-wireable connections with a compact straight profile.

Key Features

• 4-position M12 socket, coding A
• Straight cable outlet with PG7 screw gland (cable diameter 4–6 mm)
• Screw connection method
• Unshielded; ≥50 insertion/withdrawal cycles
• Overvoltage category II, Degree of pollution 3

Connection Specifications

• Connection cross section: 0.25 mm² – 0.75 mm² (without ferrule) | 0.14 mm² – 0.75 mm² (with ferrule) | 0.25 mm² – 0.75 mm² (solid)
• Connection cross section AWG: 24–18 (without ferrule) | 26–20 (with ferrule)
• Stripping length: 5 mm
• Tightening torque: 0.4 Nm (M12 knurl) | 0.2 Nm (screw terminal blocks) | 0.8–1 Nm (pressure screw with sleeve housing)

Dimensions

• Width: 20 mm | Height: 20 mm | Length: 54 mm
• Outside diameter: 4–6 mm | Diameter housing: 20 mm

Material Specifications

• Flammability rating: UL 94 HB
• Seal material: NBR
• Material of grip body: PA
• Contact material: CuZn | Contact surface: CuSnZn
• Contact carrier material: PA
• Material for screw connection: Zinc die-cast, nickel-plated

Connector Details

• Head design: Socket | Head cable outlet: Straight
• Head thread type: M12 | Coding: A

Part No.: 1681127
