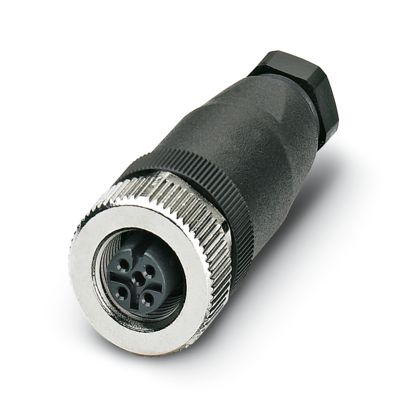

Phoenix Contact SACC-M12FS-5CON-PG7-M M12 Straight Socket Connector 5-Pin

Phoenix Contact SACC-M12FS-5CON-PG7-M – M12 Straight Socket Connector, 5-Pin

Universal M12 circular connector (cable-side socket) with straight cable outlet and screw connection. The 5-position design makes it ideal for industrial automation, sensor/actuator wiring, and panel building applications where a 5-pin interface is required — delivering robust, field-wireable connections in a compact straight profile.

Key Features

• 5-position M12 socket, coding A
• Straight cable outlet with PG7 screw gland (cable diameter 4–6 mm)
• Screw connection method; unshielded
• ≥50 insertion/withdrawal cycles
• Overvoltage category II, Degree of pollution 3

Electrical Properties

• Rated surge voltage: 1.5 kV
• Contact resistance: ≤8 mΩ
• Insulation resistance: ≥100 MΩ
• Nominal voltage (Uₙ): 48 V AC / 60 V DC
• Nominal current (Iₙ): 4 A

Connection Specifications

• Connection cross section: 0.25–0.75 mm² (without ferrule) | 0.14–0.75 mm² (with ferrule) | 0.25–0.75 mm² (solid)
• Connection cross section AWG: 24–18 (without ferrule) | 26–20 (with ferrule)
• Stripping length: 5 mm
• Tightening torque: 0.4 Nm (M12 knurl) | 0.2 Nm (screw terminal blocks) | 0.8–1 Nm (pressure screw)

Material Specifications

• Flammability rating: UL 94 HB
• Seal material: NBR
• Material of grip body: PA
• Contact material: CuZn | Contact surface: CuSnZn
• Contact carrier material: PA
• Material for screw connection: Zinc die-cast, nickel-plated

Connector Details

• Head design: Socket | Head cable outlet: Straight
• Head thread type: M12 | Coding: A
• No. of cable outlets: 1 | Shielded: No

Part No.: 1662968
