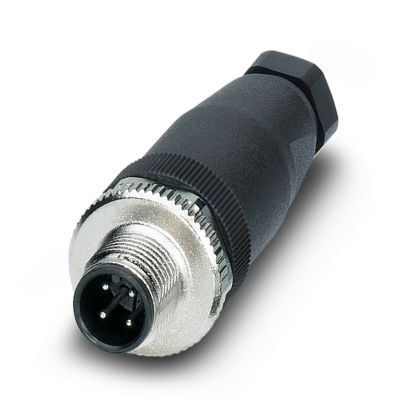

Phoenix Contact SACC-M12MS-4CON-PG7-M – M12 Straight Plug Connector, 4-Pin

Universal M12 circular connector (cable-side plug) with straight cable outlet and screw connection. Rated for 250V AC/DC, this 4-position male plug is built for demanding industrial automation, sensor/actuator wiring, and panel building applications — delivering reliable field-wireable connections with a robust straight profile.

Key Features

• 4-position M12 plug (male), coding A
• Straight cable outlet with PG7 screw gland (cable diameter 4–6 mm)
• Screw connection; knurl material: Zinc die-cast, nickel-plated
• Unshielded; ≥50 insertion/withdrawal cycles
• Overvoltage category II, Degree of pollution 3

Electrical Properties

• Rated surge voltage: 2.5 kV
• Contact resistance: ≤8 mΩ
• Insulation resistance: ≥100 MΩ
• Nominal voltage (Uₙ): 250 V AC / 250 V DC
• Nominal current (Iₙ): 4 A

Product Properties

• Product type: Circular connector (cable-side)
• Number of positions: 4
• No. of cable outlets: 1 | Shielded: No
• Cable outlet: Straight | Pg screw connection: Pg7
• Coding: A

Material Specifications

• Flammability rating: UL 94 HB
• Seal material: NBR
• Material of grip body: PA
• Contact material: CuZn | Contact surface: CuSnZn
• Contact carrier material: PA
• Material for screw connection: Zinc die-cast, nickel-plated

Connector Details

• Head design: Plug | Head cable outlet: Straight
• Head thread type: M12 | Coding: A
• Signal type/category: Universal | Stripping length: 5 mm

Part No.: 1662528
