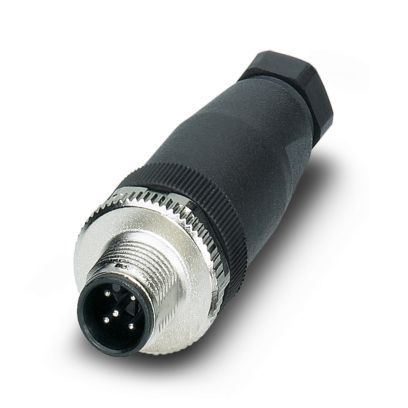

Phoenix Contact SACC-M12MS-5CON-PG7-M M12 Straight Plug Connector 5-Pin

Phoenix Contact SACC-M12MS-5CON-PG7-M – M12 Straight Plug Connector, 5-Pin

Universal M12 circular connector (cable-side plug) with straight cable outlet and screw connection. This 5-position male plug is engineered for industrial automation, sensor/actuator wiring, and panel building applications — delivering dependable field-wireable connections with a compact straight profile and 48V AC/60V DC rating.

Key Features

• 5-position M12 plug (male), coding A
• Straight cable outlet with PG7 screw gland (cable diameter 4–6 mm)
• Screw connection; knurl material: Zinc die-cast, nickel-plated
• Unshielded; ≥50 insertion/withdrawal cycles
• Overvoltage category II, Degree of pollution 3

Electrical Properties

• Rated surge voltage: 1.5 kV
• Contact resistance: ≤8 mΩ
• Insulation resistance: ≥100 MΩ
• Nominal voltage (Uₙ): 48 V AC / 60 V DC
• Nominal current (Iₙ): 4 A

Product Properties

• Product type: Circular connector (cable-side)
• Number of positions: 5 | No. of cable outlets: 1
• Shielded: No | Coding: A
• Cable outlet: Straight | Pg screw connection: Pg7
• Overvoltage category II | Degree of pollution 3

Connection Specifications

• Connection method: Screw connection
• Connection cross section: 0.25–0.75 mm² (without ferrule) | 0.14–0.75 mm² (with ferrule) | 0.25–0.75 mm² (solid)
• Connection cross section AWG: 24–18 (without ferrule) | 26–20 (with ferrule)
• Stripping length: 5 mm
• Tightening torque: 0.4 Nm (M12 knurl) | 0.2 Nm (screw terminal blocks) | 0.8–1 Nm (pressure screw)

Dimensions

• Width: 20 mm | Height: 20 mm | Length: 60 mm
• Outside diameter: 4–6 mm | Diameter housing: 20 mm

Material Specifications

• Flammability rating: UL 94 HB
• Seal material: NBR | Material of grip body: PA
• Contact material: CuZn | Contact surface: CuSnZn
• Contact carrier material: PA
• Material for screw connection: Zinc die-cast, nickel-plated

Part No.: 1663116
