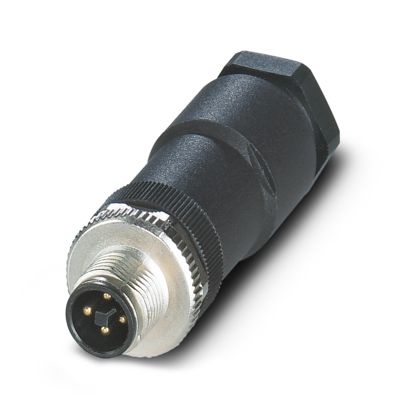

Phoenix Contact SACC-M12MST-3PECON-PG11-M – M12 Power Straight Plug Connector, 3-Pin

Heavy-duty M12 circular power connector (cable-side plug) with straight cable outlet, T-coding, and screw connection. Rated at 63V DC and 12A, this 3-position plug is purpose-built for energy supply applications in industrial automation and panel building — delivering robust, field-wireable power connections with gold contacts and a superior UL94 V0 flammability rating.

Key Features

• 3-position M12 plug (male), coding T — power application
• Straight cable outlet with Pg11 screw gland (cable diameter 8–10 mm)
• Screw connection; ≥100 insertion/withdrawal cycles
• Gold (Au) contact surface for superior conductivity and corrosion resistance
• UL94 V0 flammability rating (vs HB on signal variants)
• Overvoltage category III, Degree of pollution 3

Electrical Properties

• Rated surge voltage: 1.5 kV
• Contact resistance: ≤3 mΩ
• Insulation resistance: >10 GΩ
• Nominal voltage (Uₙ): 63 V DC
• Nominal current (Iₙ): 12 A (using 1.5 mm² conductors) | 12 A (at 40°C)

Product Properties

• Product type: Circular connector (cable-side) | Application: Energy supply
• Number of positions: 4 (3 power + PE) | No. of cable outlets: 1
• Shielded: No | Coding: T | Cable outlet: Straight | Pg screw connection: Pg11

Connection Specifications

• Connection method: Screw connection
• Connection cross section: 0.75–1.5 mm² (without ferrule) | 0.75–1.5 mm² (with ferrule) | 0.75–2.5 mm² (solid)
• Connection cross section AWG: 18–14 (without ferrule) | 18–16 (with ferrule)
• Stripping length: 5 mm
• Tightening torque: 0.4 Nm (M12 knurl) | 1.5–2 Nm (pressure screw) | 0.4 Nm (screw plug insert) | 0.2 Nm (screw terminal blocks)
• Assembly note: Wires can be connected both with and without ferrules

Dimensions

• Width: 20 mm | Height: 20 mm | Length: 65.5 mm
• Outside diameter: 8–10 mm | Diameter housing: 20 mm | Wrench size (union nut): 19 mm

Material Specifications

• Flammability rating: UL 94 V0
• Seal material: NBR | Material of grip body: PA
• Contact material: CuZn | Contact surface: Au (gold)
• Contact carrier material: PA
• Material for screw connection: Zinc die-cast, nickel-plated

Part No.: 1404643 | List price: €29.16 excl. VAT
