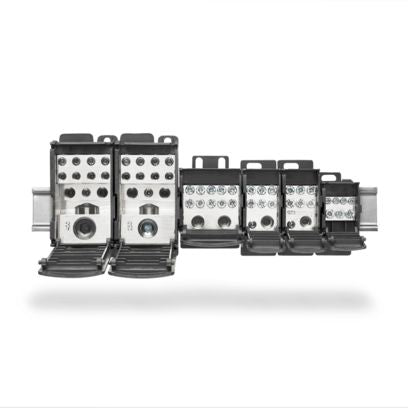

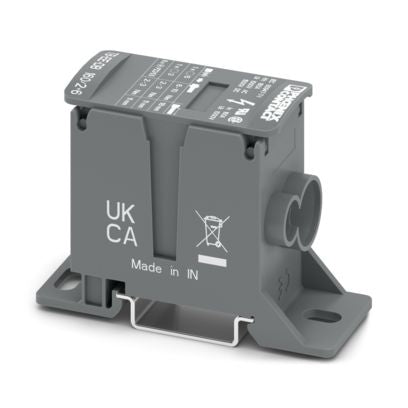

Phoenix Contact TB-EE-DB 160/2+6 DIN Rail Distribution Block 160 A 8-Way Screw Terminals

The Phoenix Contact TB-EE-DB 160/2+6 is a high-current distribution block designed for power distribution and wiring consolidation in industrial installations, control panels, and machine-building applications. It supports up to 160 A thermal continuous current (150 A nominal) and 1 000 V AC rated voltage, making it suitable for robust electrical systems and high-power bus distribution.

This unit features eight connection points—one main supply connection and six load pick-offs—each secured via screw terminals for reliable clamping of both rigid and flexible conductors. The line contact accepts conductor cross-sections from 16 mm² to 70 mm², while load connections cover 2.5 mm² to 16 mm², providing flexible wiring options for distribution circuits and panel layouts. Mounting is compatible with both NS 35/7.5 and NS 35/15 DIN rails or direct mounting for space-efficient panel buildouts.

Built in a rugged dark gray, UL 94 V-0 rated housing, this compact distribution block provides dependable power distribution and sectionalized wiring in industrial automation, power control panels, and electrical service boards.

Key Specifications:

• Model: Phoenix Contact TB-EE-DB 160/2+6 (Part No. 1725166)

• Rated Voltage: Up to 1 000 V AC (suitable insulation for high-voltage panels)

• Nominal Current: 150 A; Thermal continuous current: 160 A

• Number of Connections: 8 (1 supply + 7 distribution points)

• Connection Method: Screw connection (M10 line, M5/M6 load)

• Conductor Cross-Section (Line): 16–70 mm²; Load: 2.5–16 mm²

• Mounting: DIN rail (NS 35/7.5 or NS 35/15) or direct panel mounting

• Protection: Degree of Pollution 3 rating

This block simplifies power distribution, neat wiring, and phase splitting across multiple circuits in compact control cabinets and industrial installations.
