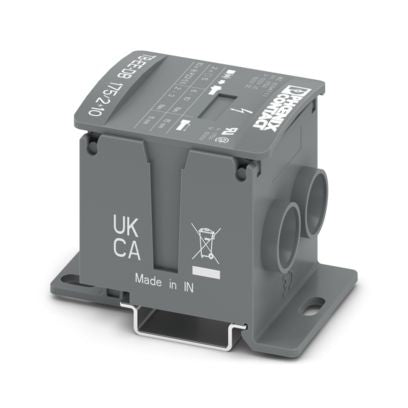

Phoenix Contact TB-EE-DB 175/2+10 DIN Rail Distribution Block 175 A 12-Way Screw Terminals

The Phoenix Contact TB-EE-DB 175/2+10 (Part No. 1725168) is a heavy-duty DIN rail-mount distribution block engineered for high-current power distribution and control panel wiring in industrial automation and machine-building applications. It features 12 screw-type terminals — a main line connection plus ten load pick-offs — enabling organized power splitting to multiple circuits from a single feed.

With a thermal continuous current rating of 175 A and a nominal voltage up to 1000 V AC (suitable for DC applications up to approximately 1500 V), this distribution block is ideal for main power feeds, busbar distribution, and high-current panels. Conductors are secured using robust screw connections, with ferrules recommended for flexible cable terminations.

📌 Key Specifications

• Model: TB-EE-DB 175/2+10 Distribution Block (1725168)

• Rated Voltage: Up to 1000 V AC

• Nominal Current: 150 A

• Thermal Continuous Current: 175 A

• Number of Connections: 12 (1 line + 10 load)

• Connection Method: Screw terminals with M10 (line) and M5 (load) threads

• Conductor Cross-Section (Line): 10 – 70 mm²

• Conductor Cross-Section (Load): 2.5 – 16 mm²

• Mounting: DIN rail (NS 35/7.5 or NS 35/15) or direct panel mounting

• Protection: Degree of pollution 3 (IEC)

• Housing Color: Dark gray

Designed for efficient power splitting and neat wiring layouts, this distribution block supports organized multi-connection distribution and enhances reliability in industrial power systems.
