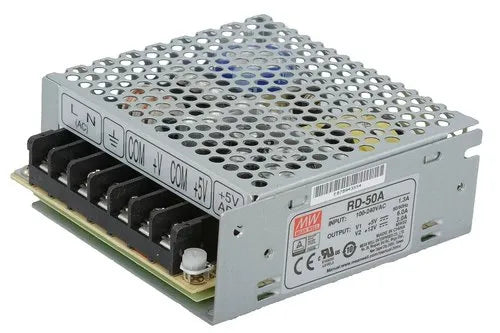

RD-50A – 5V & 12V Dual Output Power Supply Output Power: 54W Outputs: 5V @ 6A & 12V @ 2A

Mounting: Chassis mount Enclosure: Metal case

Key Specifications:

• Input Voltage: 88–264V AC / 125–373V DC
• Output Voltages:
• CH1: 5V DC (adjustable 4.75–5.5V)
• CH2: 12V DC
• Rated Current: 6A (CH1), 2A (CH2)
• Efficiency: Up to 79%
• Ripple & Noise: 80mVp-p (5V), 120mVp-p (12V)
• Protection Features:
• Overload (110–150%, hiccup mode)
• Overvoltage (CH1: 5.75–6.75V)
• Short circuit
• Operating Temperature: -25°C to +70°C
• Dimensions: 99 × 97 × 36mm
• Certifications: UL, CE, TUV, RoHS
• MTBF: > 2.9 million hours (Telcordia SR-332)

Applications:

• Embedded control systems
• PLC and sensor power supply
• LED lighting and signage
• Security and access control systems
