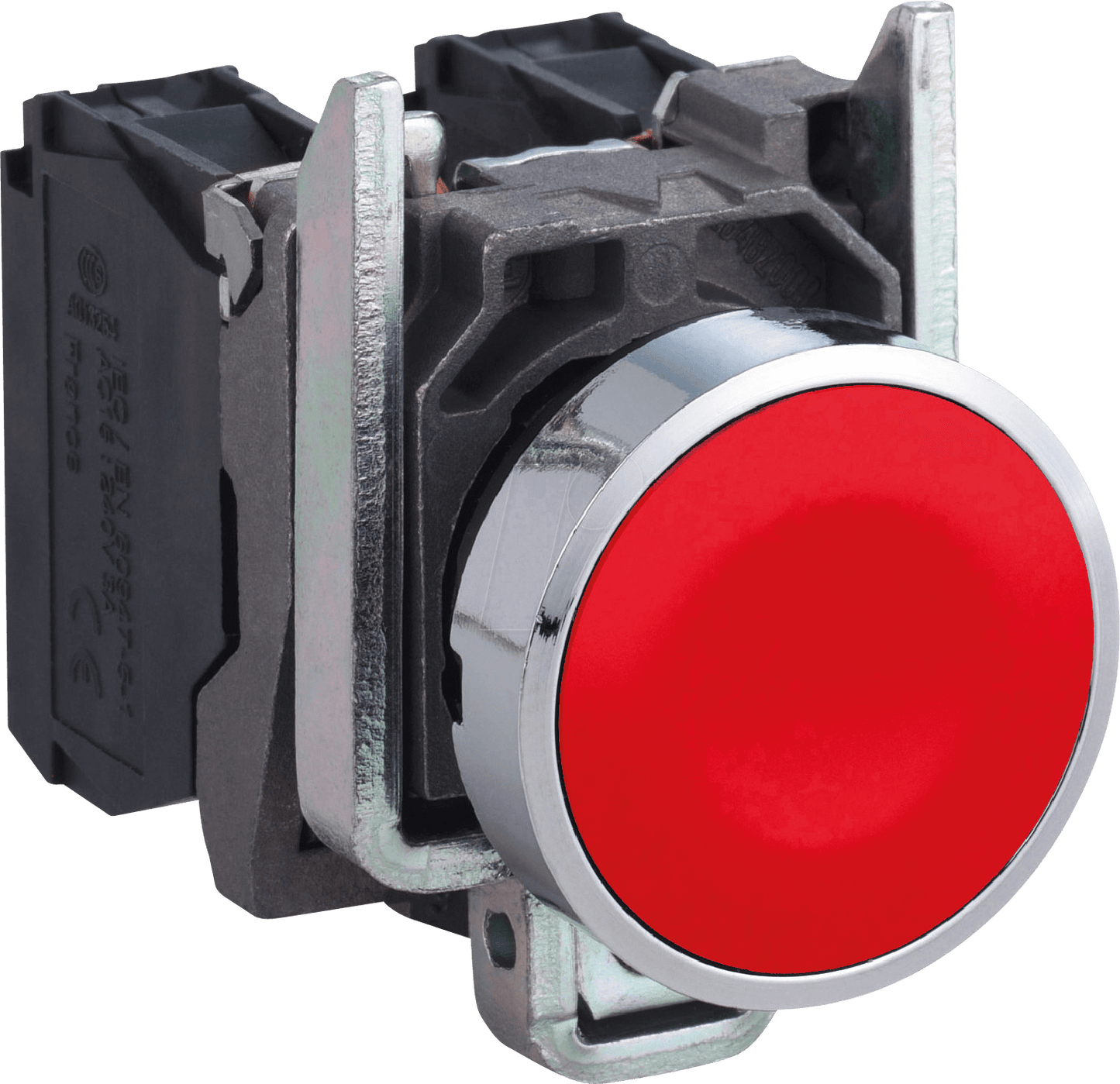

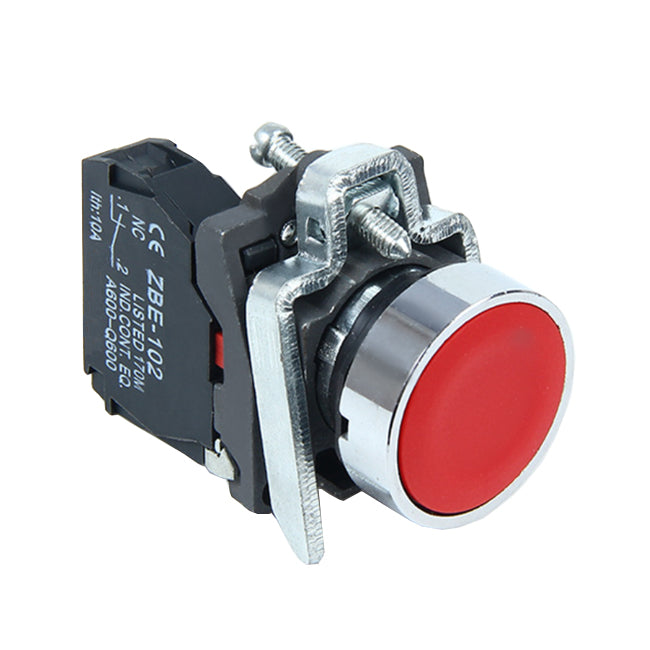

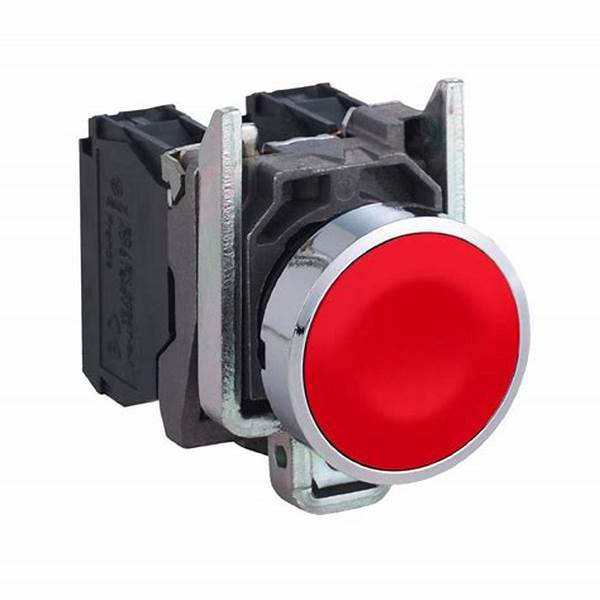

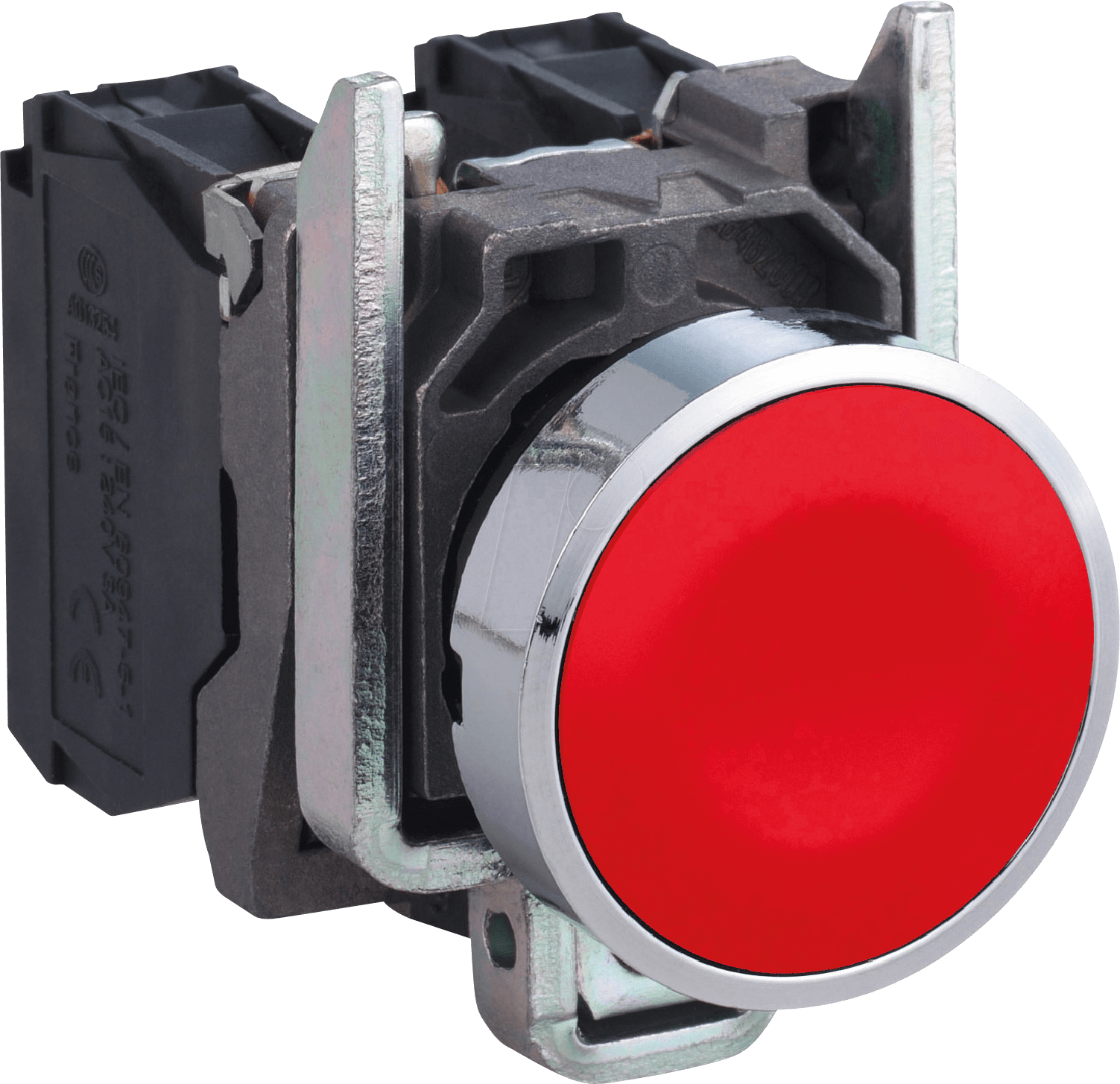

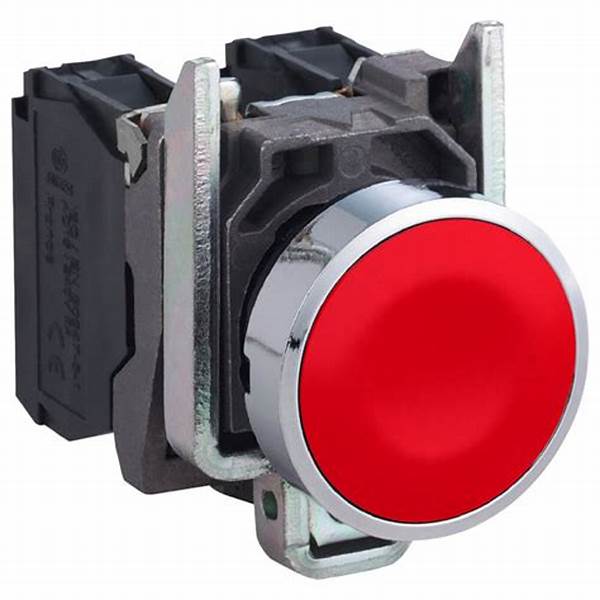

Red Push Button – Momentary Type

Function: Normally Open (NO) Mounting Hole: 22mm Operation: Momentary (spring return)

Product Overview:

This industrial-grade Red Push Button is designed for control panels, emergency stops, and machine start/stop functions. Its vibrant red cap ensures high visibility, making it ideal for safety-critical applications.

Key Specifications:

• Contact Configuration: 1NO or 1NC (customizable)
• Rated Voltage: 24V / 110V / 220V AC/DC
• Current Rating: 3A to 10A depending on model
• Material:
• Cap: Polycarbonate or thermoplastic
• Body: Flame-retardant ABS or metal alloy
• Mounting Type: Panel mount with screw terminals
• Ingress Protection: IP65 (dust-tight and water-resistant)
• Mechanical Life: ≥ 1,000,000 operations
• Operating Temperature: -25°C to +70°C

Features:

• High-contrast red actuator for emergency or stop functions
• Snap-action mechanism for reliable tactile feedback
• Optional LED illumination for status indication
• Compatible with standard 22mm or 30mm panel cutouts
• CE, RoHS, and UL compliant

Applications:

• Industrial control panels
• Motor starters and contactor circuits
• Emergency stop stations
• HVAC and automation systems
