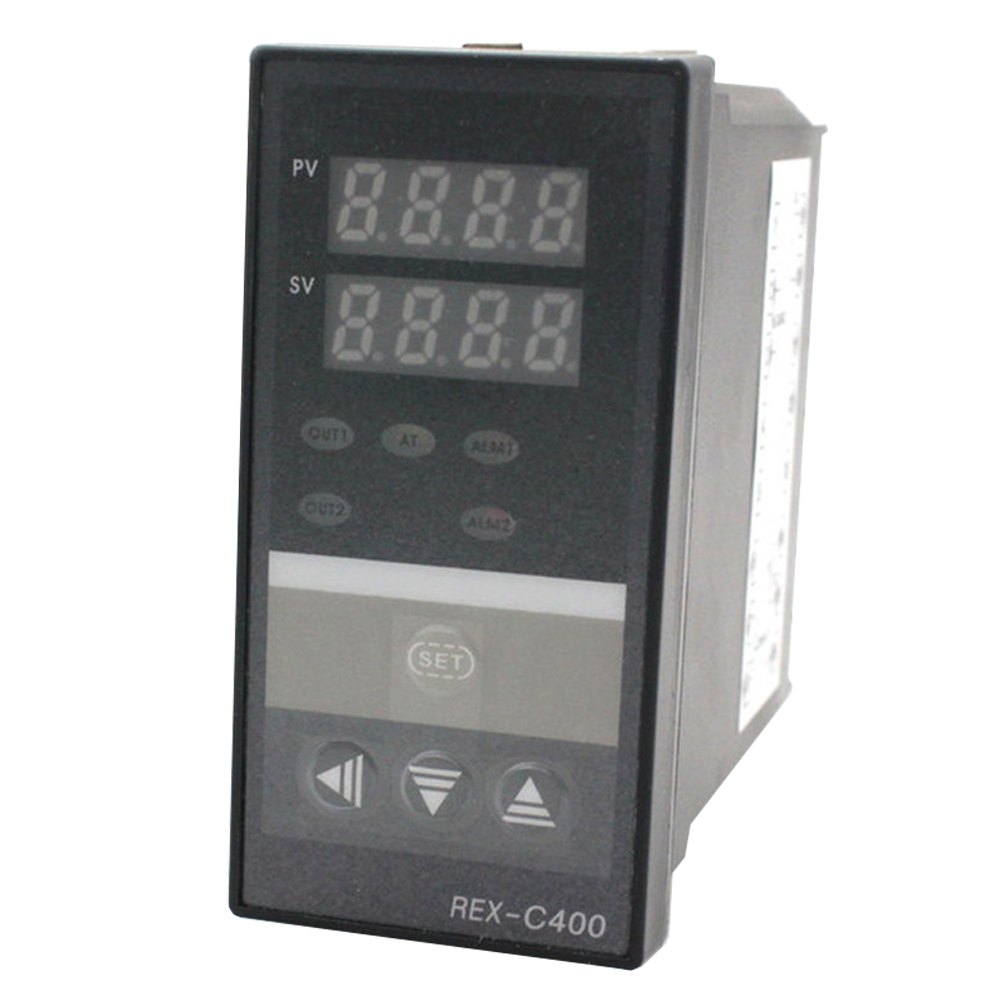

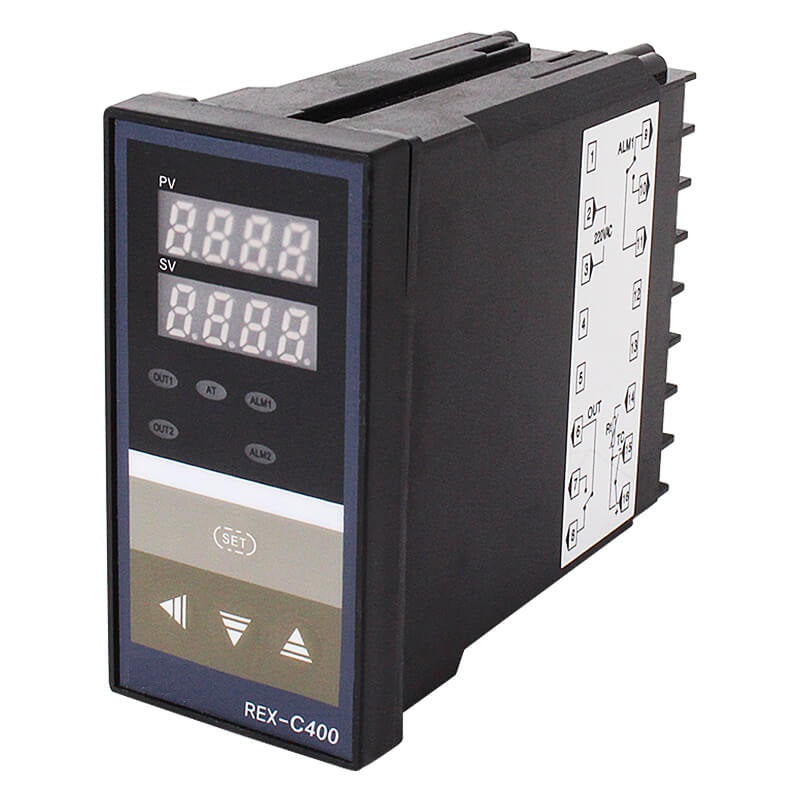

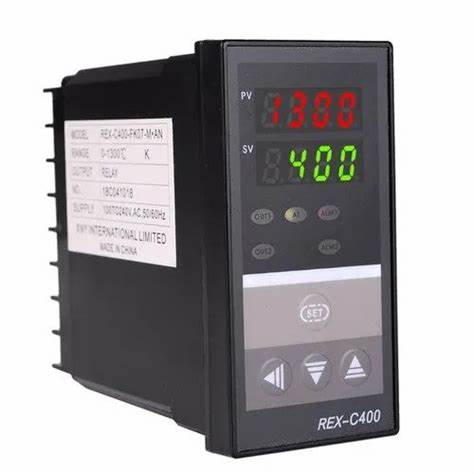

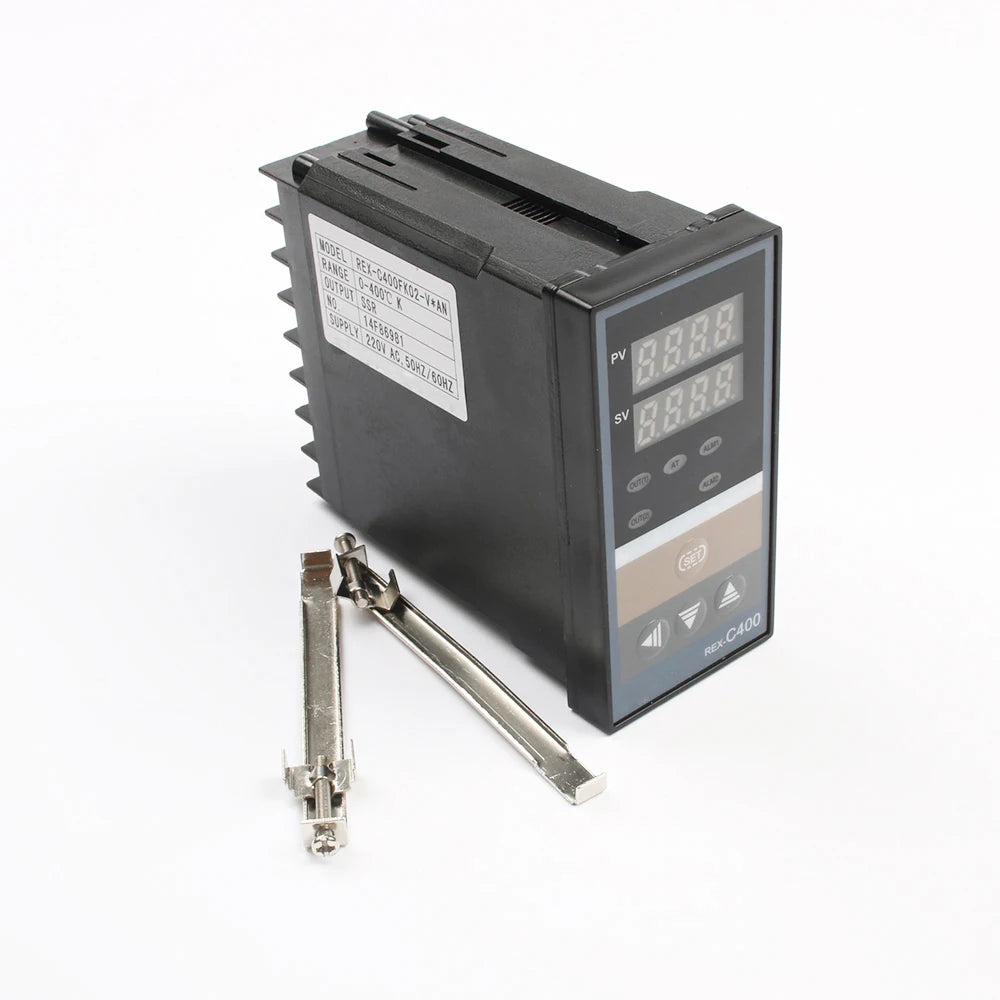

REX-C400 Digital PID Temperature Controller

Precision Control for Industrial Applications

The REX-C400 is a compact, high-performance digital PID temperature controller designed for precise thermal regulation in industrial environments. With its advanced self-tuning PID algorithm and versatile input/output options, it ensures stable and responsive temperature control across a wide range of applications.

🔧 Key Features:

• Control Mode: PID with auto-tuning for fast response and minimal overshoot
• Input Types: Thermocouple (K, J, R, S, B, E, N, T) and RTD (Pt100, Cu50)
• Output Options: Electromagnetic relay, SSR (voltage pulse), 4–20 mA current, or SCR (zero-crossing pulse)
• Alarm Functions: Configurable upper/lower deviation alarms for enhanced safety
• Display: Bright 4-digit LED with intuitive interface
• Accuracy: ±0.5% FS for reliable performance
• Power Supply: AC 100–240V, 50/60Hz
• Panel Size: 48 × 96 mm (vertical mount)

📦 Applications:

Ideal for use in:

• Industrial ovens and furnaces
• Plastic molding machines
• Food processing equipment
• HVAC systems
• Laboratory heating setups

📐 Dimensions:

• External: 48 × 96 × 110 mm
• Panel Cutout: 45 × 92 mm
