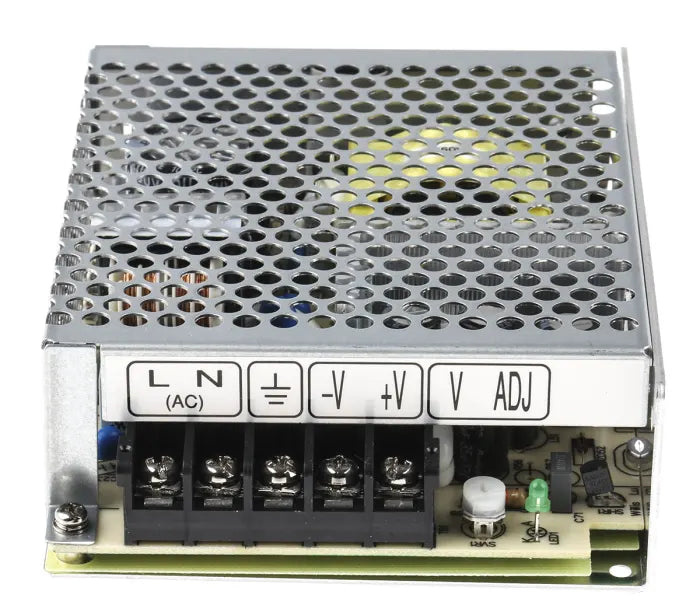

RS-35-24 – 24V 1.5A Power Supply Output Power: 36W Output Voltage: 24V DC Current: 1.5A

Mounting: Chassis mount Enclosure: Metal case

Key Specifications:

• Input Voltage: 88–264V AC / 125–373V DC
• Output Voltage: 24V DC (adjustable 22–27.6V)
• Efficiency: Up to 88%
• Ripple & Noise: ≤ 120mVp-p
• Protection Features:
• Overload (110–150%, hiccup mode)
• Overvoltage (27.6–32.4V)
• Short circuit
• Operating Temperature: -25°C to +70°C (derating above 50°C)
• Dimensions: 99 × 82 × 36mm
• Certifications: UL, CE, TUV, RoHS
• MTBF: > 3.4 million hours (Telcordia SR-332)

Applications:

• PLC and sensor power supply
• LED lighting and signage
• Industrial control panels
• Security and access systems
