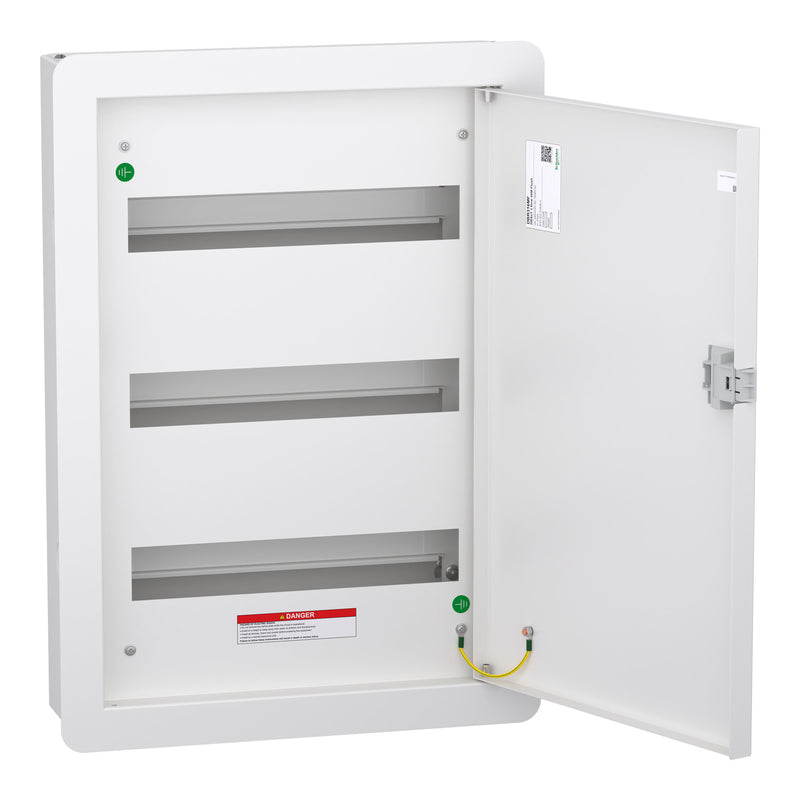

Schneider Electric DBSeT DBR316MF 100 A Flush-Mount Distribution Board – 3-Row, 48-Way (Flush Mount)

The Schneider Electric DBSeT DBR316MF is a robust low-voltage distribution board engineered for organized electrical feeder and branch distribution in residential, commercial, and light-industrial installations. This flush-mount distribution board supports a 48-module capacity in a 3-row configuration, enabling flexible integration of circuit protection devices such as MCBs, RCBOs, and isolators for effective load segmentation.

Constructed with a painted sheet-steel enclosure (1.2 mm thick) in a clean white finish (RAL 9003), the DBR316MF delivers both durability and aesthetic appeal when recessed into walls or recessed cabinets. It features a plain door, providing a safe and tidy installation environment while safeguarding internal wiring.

Key Technical Features:

• Model: DBR316MF – 3-row distribution board, flush mounting.

• Capacity: Space for 48 × 18 mm modular devices (e.g., MCBs and RCBOs).

• Rated Current: 100 A incoming busbar rating.

• Rated Insulation Voltage: 500 V AC.

• Enclosure: Painted sheet steel, 1.2 mm thickness with plain flush door.

• Mounting Type: Flush (fits recessed installation).

• Application: Ideal for structured protection and distribution of circuits in commercial and residential electrical systems.

This model is part of Schneider Electric’s DBSeT panelboard family — featuring modular adaptability and compliance with relevant IEC distribution board standards.
