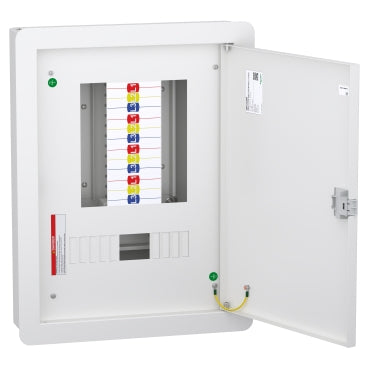

Schneider Electric DBV324MF DBSeT VTPN 24-Module 125A Flush-Mount Distribution Board (No MCB)

The Schneider Electric DBV324MF is a DBSeT VTPN distribution board engineered for low-voltage three-phase power distribution in residential, commercial, and light-industrial electrical installations. This flush-mount panel accommodates 24 outgoing ways and provides a 125 A rated modular incomer provision, allowing you to install circuit protection devices such as isolators, RCCBs, RCBOs, or MCBs as required.

Constructed with 1.2 mm painted sheet steel and a plain flat steel door finished in white RAL 9003, the enclosure offers a clean and durable design that blends into modern electrical setups. Designed to meet global safety standards, it complies with IEC 61439-1 and IEC 61439-3, and features rated withstand performance for short-time and impulse events — 17 kA for 0.25 s and 6 kV respectively. The board supports system voltages from 240 V to 415 V AC (50/60 Hz) and an insulation voltage of 500 V AC, making it a versatile solution for 3-phase + neutral (VTPN) configurations.

Key Features:

• Model: Schneider Electric DBV324MF VTPN distribution board

• Number of Ways: 24 outgoing module positions

• Rated Current (In): 125 A

• Mounting: Flush-mount panel type

• Rated Voltage: 240 – 415 V AC (3-phase + neutral)

• Insulation Voltage: 500 V AC

• Short-Time Withstand Current: 17 kA (0.25 s)

• Impulse Withstand Voltage (Uimp): 6 kV

• Degree of Protection: IP41 (closed door)

• IK Rating: IK08 impact resistance

• Enclosure: Painted sheet steel, plain door included

• Standard Compliance: IEC 61439-1 / IEC 61439-3

This distribution board provides a flexible platform for configuring circuit protection and distribution devices in 3-phase power systems, enabling scalable installation and maintenance.
