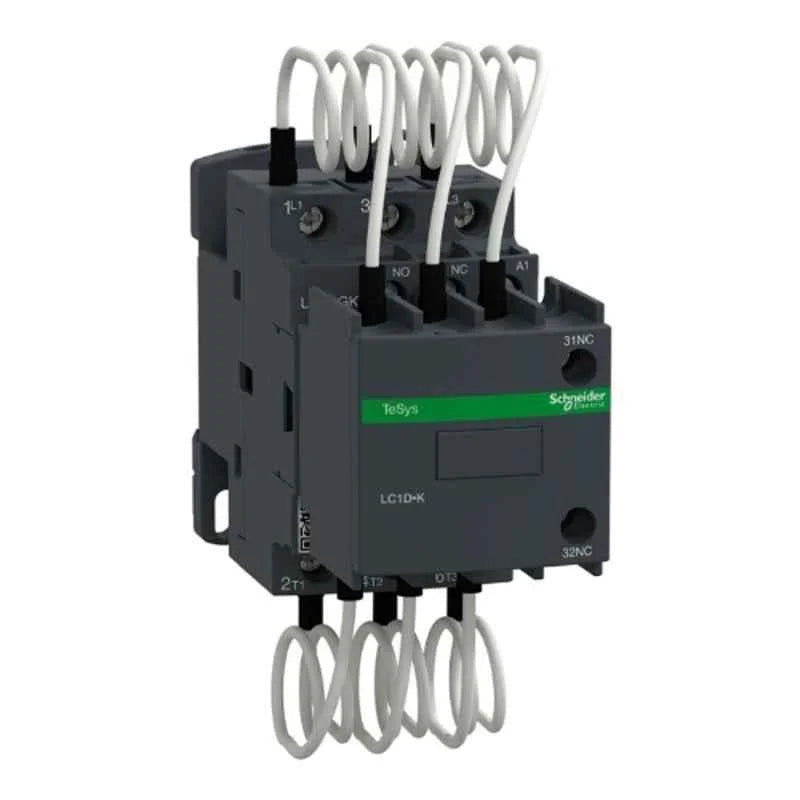

Schneider Electric LC1DMKP7 Contactor for Capacitor – 3P 25kVAr 415V Coil 230VAC

The Schneider Electric LC1DMKP7 Capacitor Contactor is a specialized 3-pole contactor designed for switching capacitor banks in power factor correction (PFC) systems. Rated for 25kVAr at 415V, this contactor is engineered to manage the high inrush currents associated with capacitor switching operations.

With a 230VAC control coil, the LC1DMKP7 is suitable for integration into automatic power factor correction (APFC) panels and reactive power compensation systems in industrial and commercial installations.

Unlike standard motor contactors, this capacitor-duty contactor incorporates pre-charge resistors to limit transient currents during capacitor energization, ensuring longer equipment life and improved system stability.

Technical Specifications

• Brand: Schneider Electric

• Model: LC1DMKP7

• Product Type: Capacitor Duty Contactor

• Number of Poles: 3P

• Rated Capacitor Power: 25kVAr @ 415V

• Rated Operational Voltage (Ue): 415V AC

• Control Coil Voltage: 230VAC

• Frequency: 50/60Hz

• Application: Capacitor bank switching

• Mounting Type: DIN rail / Panel mount

• Utilization Category: AC-6b (capacitor switching)

Key Features

🔹 Designed for Capacitor Switching

Specifically built to switch power factor correction capacitors safely and reliably.

🔹 Inrush Current Limiting

Integrated early-make auxiliary contacts with damping resistors reduce high inrush currents during capacitor energization.

🔹 25kVAr Rating at 415V

Ideal for step switching in automatic PFC panels.

🔹 230VAC Coil Voltage

Compatible with common control circuit voltages in APFC systems.

🔹 Heavy-Duty 3-Pole Design

Suitable for three-phase low-voltage capacitor banks.

Typical Applications

• Automatic Power Factor Correction (APFC) panels

• Industrial capacitor banks

• Commercial reactive power compensation systems

• Manufacturing plants

• Transformer substations

• Generator-backed installations

Benefits

✔ Protects capacitors from switching stress
✔ Extends capacitor and contactor lifespan
✔ Reduces transient switching disturbances
✔ Reliable Schneider Electric quality
✔ Essential component for efficient PFC systems
