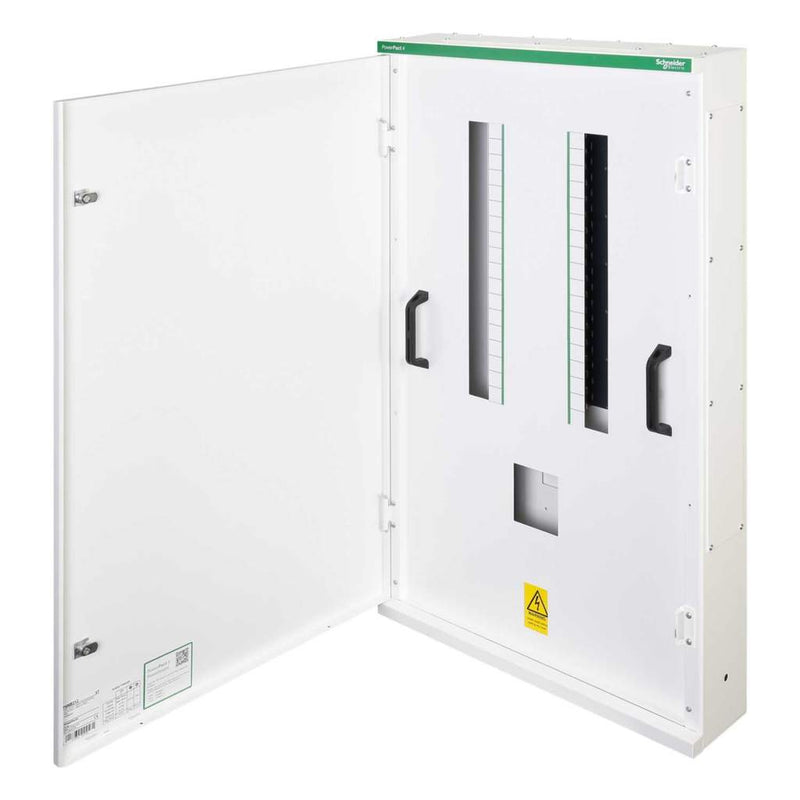

Schneider Electric Powerline PLUS PB 630A 4-Way NSX250 MCCB Panel Board Frame (Model: PPN604M)

The Schneider Electric Powerline PLUS PB 630A Panel Board Frame (Model: PPN604M) is a medium-capacity MCCB distribution board designed to support safe, modular power distribution in commercial and industrial electrical installations. Rated for 630 A incoming current, this panelboard frame accommodates four outgoing Compact NSX250 MCCB breakers, enabling flexible circuit protection and segregation of multiple load circuits.

Part of Schneider’s Powerline PLUS PB series, the PPN604M frame is engineered for durability and reliable electrical performance. The panel board supports a fully type-tested busbar system suitable for high current applications, and its layout simplifies cable management and future expansions. Tin-plated copper busbars are used to ensure excellent conductivity and long-term stability.

Key Technical Features:

• Model: PPN604M – Powerline PLUS PB panel board frame with outgoing MCCB spaces.

• Rated Current: 630 A incoming busbar rating for robust distribution performance.

• Outgoing Capacity: Space for 4 × NSX250 MCCB modules (breakers not included).

• Panel Frame Construction: Sturdy type-tested enclosure designed for easy installation and maintenance.

• Application: Ideal for commercial switchboards, industrial power distribution setups, and modular MCCB segregation.

This panelboard frame is supplied without outgoing MCCBs, allowing customers to configure their preferred protection devices based on specific load and coordination requirements.
