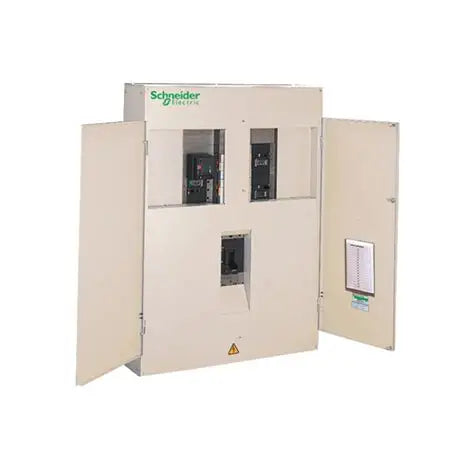

Schneider Electric Powerline PLUS PB 800A 6-Way NSX250 + 2-Way NSX400 MCCB Panel Board Distribution Board

The Schneider Electric Powerline PLUS PB 800A Panel Board is a robust electrical distribution solution engineered for commercial and industrial environments. Designed to support reliable power distribution up to 800 A, this panel board combines six outgoing NSX250 miniature circuit breaker (MCCB) modules with two outgoing NSX400 MCCB modules for versatile protection and branch-circuit segregation.

Constructed as part of the Powerline PLUS range, the panelboard features a fully type-tested enclosure compliant with international standards for safety and performance. The busbar system is engineered for excellent conductivity and mechanical durability, facilitating secure connections and scalable configuration.

Key features include:

• Rated Incoming Current: 800 A suitable for heavy-duty distribution systems.

• Outgoing Distribution: Configured with 6 × NSX250 MCCBs and 2 × NSX400 MCCBs for flexible load segmentation and protection.

• Modular MCCB Integration: Compact NSX series breakers engineered for high breaking capacity, easy access, and maintenance simplicity.

• Fully Type-Tested Design: Enclosure and busbar systems demonstrated to meet rigorous electrical and mechanical performance standards.

• Installation-Ready: Designed for quick installation in switchrooms, distribution cabinets, and electrical infrastructure panels.

This panelboard is ideal for facilities requiring dependable protection coordination, simplified wiring layouts, and modular expansion capabilities.
