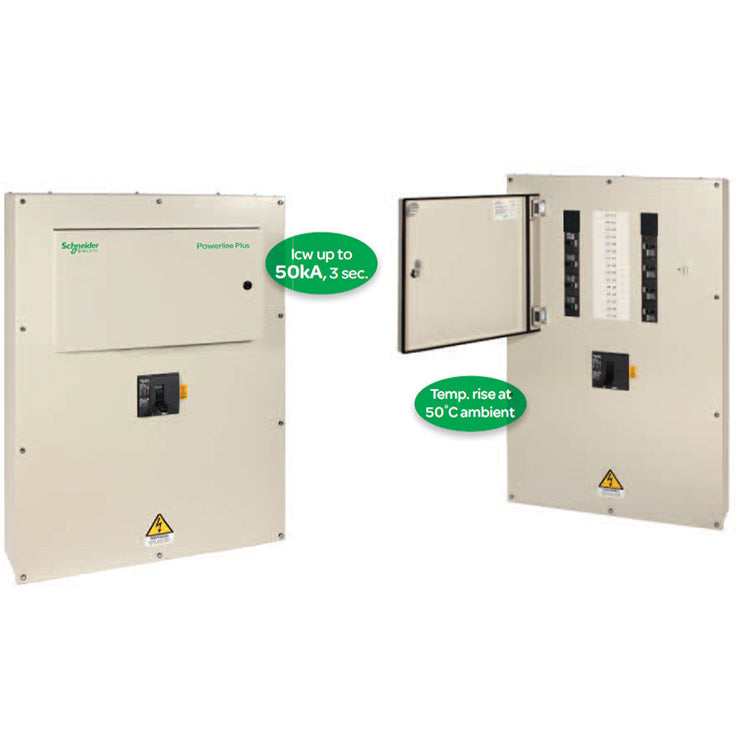

Schneider Electric PPN882M Powerline Plus Panelboard – 800A 8 Way (NSX250) + 2 Way (NSX40), TPN Distribution Board

The Schneider Electric PPN882M Powerline Plus Panelboard is a high-capacity 800A low-voltage distribution board designed for industrial and commercial power distribution systems.

Configured with 8 outgoing ways using Compact NSX250 MCCBs and 2 outgoing ways using Compact NSX40 breakers, this Powerline Plus board delivers reliable protection, load segregation, and scalable distribution for demanding electrical installations.

Engineered for safety, performance, and modular expansion, the PPN882M panelboard is ideal for main distribution applications in factories, commercial complexes, substations, and large facilities.

Key Configuration

• Model: PPN882M

• Series: Powerline Plus

• Rated Current: 800A

• Outgoing Ways:

  • 8 × NSX250 (MCCB)

  • 2 × NSX40

• System Type: 3 Phase + Neutral (TPN)

• Application: Main / Sub Distribution Panel

Technical Features

• Heavy-duty 800A busbar system

• Designed for Schneider Compact NSX series integration

• High breaking capacity MCCB compatibility

• Structured internal busbar layout

• Industrial-grade enclosure

• Reliable short-circuit protection

• Modular outgoing feeder arrangement

• Suitable for low-voltage distribution networks

Typical Applications

• Industrial power distribution systems

• Manufacturing plants

• Commercial buildings

• Transformer-fed distribution networks

• Sub-main distribution boards

• Generator-backed installations

Benefits

• High current handling (800A)

• Flexible outgoing feeder configuration

• Compact NSX integration for advanced protection

• Scalable and modular design

• Robust and long-life performance

• Improved operational safety

Installation Requirements

• Proper cable sizing for 800A rating

• Suitable upstream protection

• Earth bonding and grounding system

• Coordination with connected loads

• Installation by qualified electrical personnel
