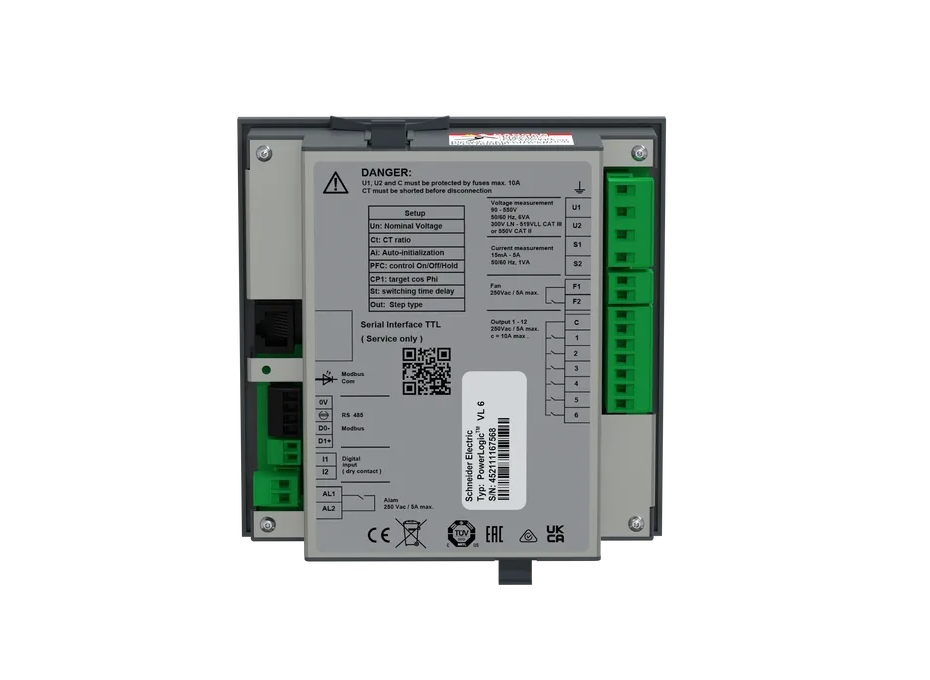

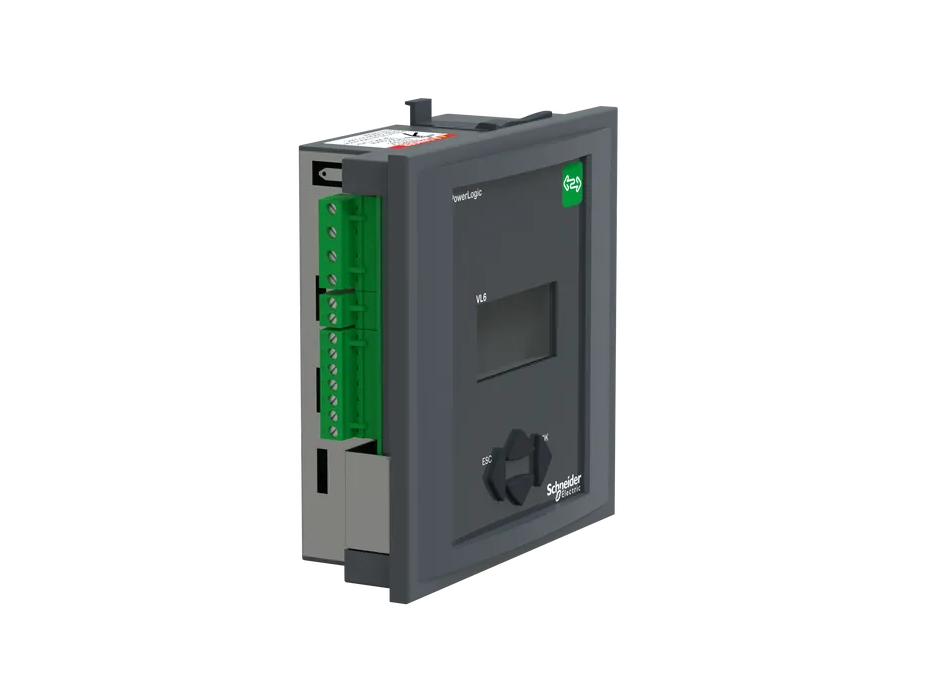

Schneider Electric VarPlus Logic VPL06N Power Factor Controller – 6 Step, 90–550V AC

The Schneider Electric VarPlus Logic VPL06N is a microprocessor-based Power Factor (PF) Controller designed for automatic control of capacitor banks in power factor correction systems. With 6 output steps, the VPL06N efficiently regulates reactive power, improves system power factor, and minimizes penalties from utility providers.

Engineered for reliability and ease of configuration, the controller continuously monitors network parameters and intelligently switches capacitor stages ON or OFF to maintain the target power factor. It is suitable for low-voltage industrial and commercial installations requiring stable and accurate PF correction.

Key Technical Specifications:

• Model: VPL06N

• Series: VarPlus Logic

• Type: Automatic Power Factor Controller

• Number of Steps: 6

• Supply Voltage Range: 90–550V AC

• Frequency: 50/60Hz

• Measurement: True RMS voltage and current sensing

• Control Mode: Automatic step switching

• Mounting: Panel mounted

• Display: Digital display for monitoring parameters

• Application: Capacitor bank control

Features & Benefits:

• Automatic power factor regulation

• Intelligent capacitor stage switching

• Reduces reactive power penalties

• Improves energy efficiency

• User-friendly configuration and monitoring

• Compact panel-mount design

• Suitable for industrial and commercial capacitor banks

Typical Applications:

• Automatic Power Factor Correction (APFC) panels

• Industrial facilities

• Commercial buildings

• Manufacturing plants

• Generator installations

The Schneider VarPlus Logic VPL06N provides accurate, reliable, and intelligent power factor control, helping improve system efficiency and reduce electricity costs.
