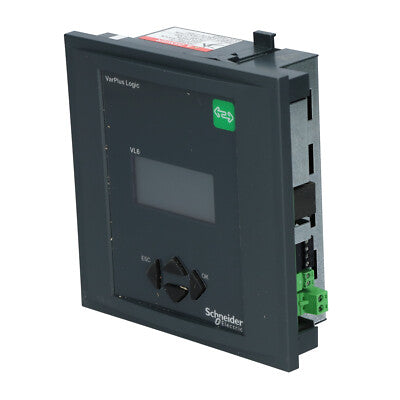

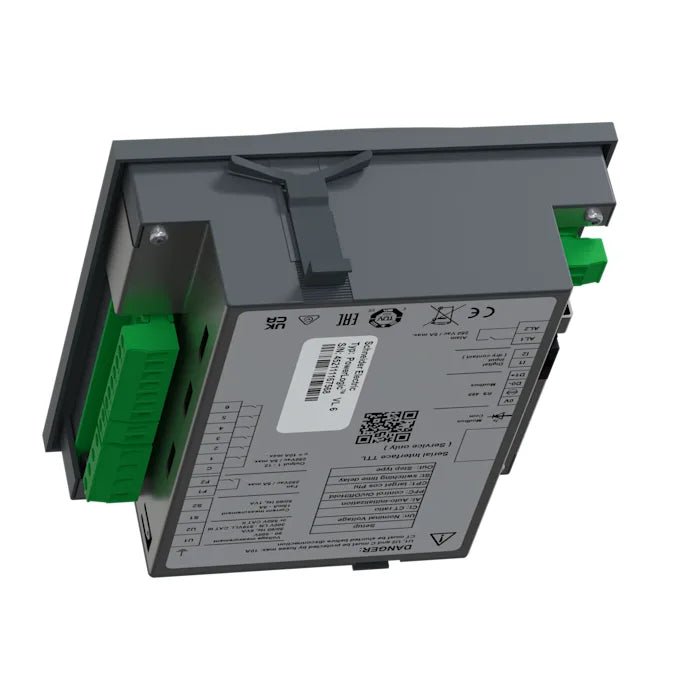

Schneider Electric VarPlus Logic VPL12N Power Factor Controller – 12 Step, 90–550V AC

The Schneider Electric VarPlus Logic VPL12N is a microprocessor-based Automatic Power Factor (PF) Controller designed for advanced control of capacitor banks in low-voltage power factor correction (PFC) systems. With 12 output steps, the VPL12N provides precise reactive power compensation, ensuring optimal power factor levels and reducing energy penalties imposed by utility providers.

The controller continuously monitors system voltage and current (True RMS measurement) and automatically switches capacitor stages ON or OFF to maintain the programmed target power factor. Its intelligent control algorithm optimizes capacitor usage, balances step switching, and enhances overall system efficiency.

Key Technical Specifications:

• Model: VPL12N

• Series: VarPlus Logic

• Type: Automatic Power Factor Controller

• Number of Steps: 12

• Supply Voltage Range: 90–550V AC

• Frequency: 50/60Hz

• Measurement Type: True RMS sensing

• Control Mode: Automatic step regulation

• Mounting: Panel mounted

• Display: Digital display for system parameters

• Application: Low-voltage capacitor bank control

Features & Benefits:

• Automatic and intelligent power factor correction

• 12-step control for medium to large capacitor banks

• Reduces reactive power penalties

• Improves energy efficiency and system stability

• Optimized capacitor switching sequence

• User-friendly programming interface

• Compact design for APFC panel integration

Typical Applications:

• Automatic Power Factor Correction (APFC) panels

• Industrial plants

• Commercial complexes

• Manufacturing facilities

• Power distribution systems

• Generator installations

The Schneider VarPlus Logic VPL12N offers reliable and accurate multi-step capacitor bank control, making it ideal for improving power quality and optimizing electrical system performance.
