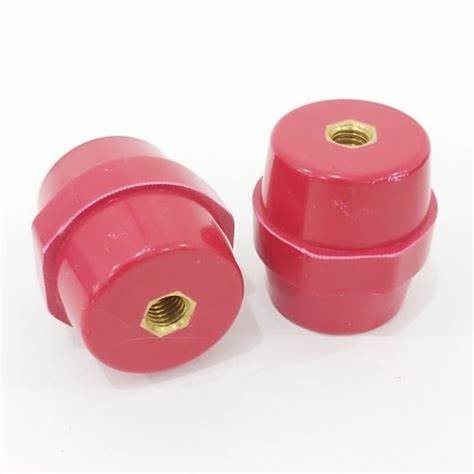

SM35 Drum Busbar Insulator with Screw

Overview:
The SM35 Drum Busbar Insulator is a high-performance standoff insulator designed for low-voltage electrical systems. Its robust construction and threaded insert provide secure mechanical support and excellent insulation for copper or aluminum busbars in compact installations.

Technical Specifications:

• Model: SM35 (with screw)
• Material: BMC/SMC (thermoset composite)
• Color: Red (custom options available)
• Height: 35 mm
• Diameter: 32 mm
• Screw Size: M6 or M8
• Screw Depth: 10–11 mm
• Tensile Strength: 600 lbs
• Torque Strength: 10 ft-lbs
• Voltage Withstand: 10 kV
• Insulation Resistance: >500 MΩ
• Operating Temperature: -40°C to +140°C
• Flammability Rating: UL94 V-0

Applications:

• Power distribution cabinets
• Inverters and switchgear
• Renewable energy systems
• Industrial control panels

Certifications:
CE, RoHS, SGS, ISO9001

Packaging Options:

• Standard: Polybag with label
• Bulk: Carton-packed for OEM orders
• Custom branding available

Why Choose SM35?
With enhanced mechanical strength and thermal resistance, the SM35 is ideal for demanding environments. Its compact drum profile and screw-mount design ensure easy installation and long-term reliability in electrical insulation and support.
