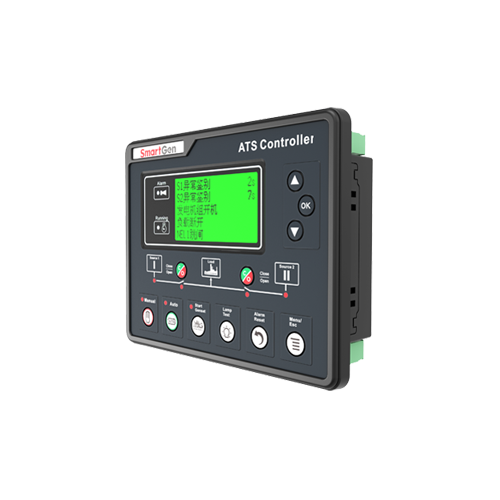

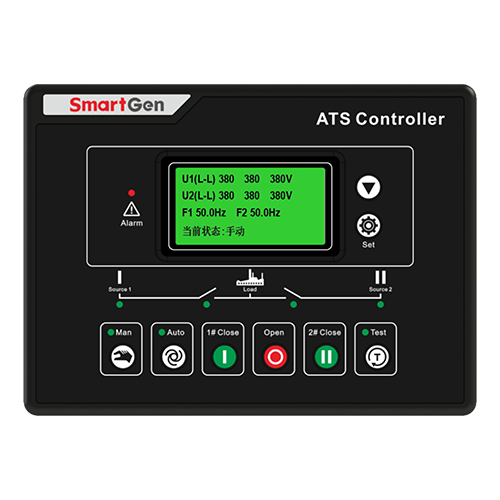

SmartGen HAT600N – Dual Power ATS Controller Model: HAT600N Power Supply: DC 8–35V Display: 128×64 LCD (Backlit) Mounting Dimensions: 209×153×55mm Cutout: 186×141mm

Product Overview:

The HAT600N is a microprocessor-based Automatic Transfer Switch (ATS) controller designed for intelligent dual power switching between mains and generator sources. It offers automatic measurement, digital communication, and programmable logic, making it ideal for critical power systems in industrial, commercial, and telecom environments.

Key Features:

• Supports Mains–Mains, Mains–Generator, or Generator–Generator configurations
• Real-time monitoring of 2-way 3-phase voltage, frequency, current, power factor, and more
• Over/under voltage, phase loss, reverse phase, and frequency protection
• Manual/Automatic modes with password-protected parameter settings
• Event log stores up to 99 records
• Scheduled genset testing (on-load/off-load) with real-time clock
• RS485 communication with Modbus protocol for remote monitoring
• Wide DC input range (8–35V) with surge tolerance up to 80V
• Compact, flame-retardant ABS housing with plug-in terminals for easy installation
• CE, RoHS compliant

Applications:

• Generator ATS panels
• Data centers and telecom base stations
• Industrial automation and building management systems
• Hospitals, banks, and mission-critical facilities
