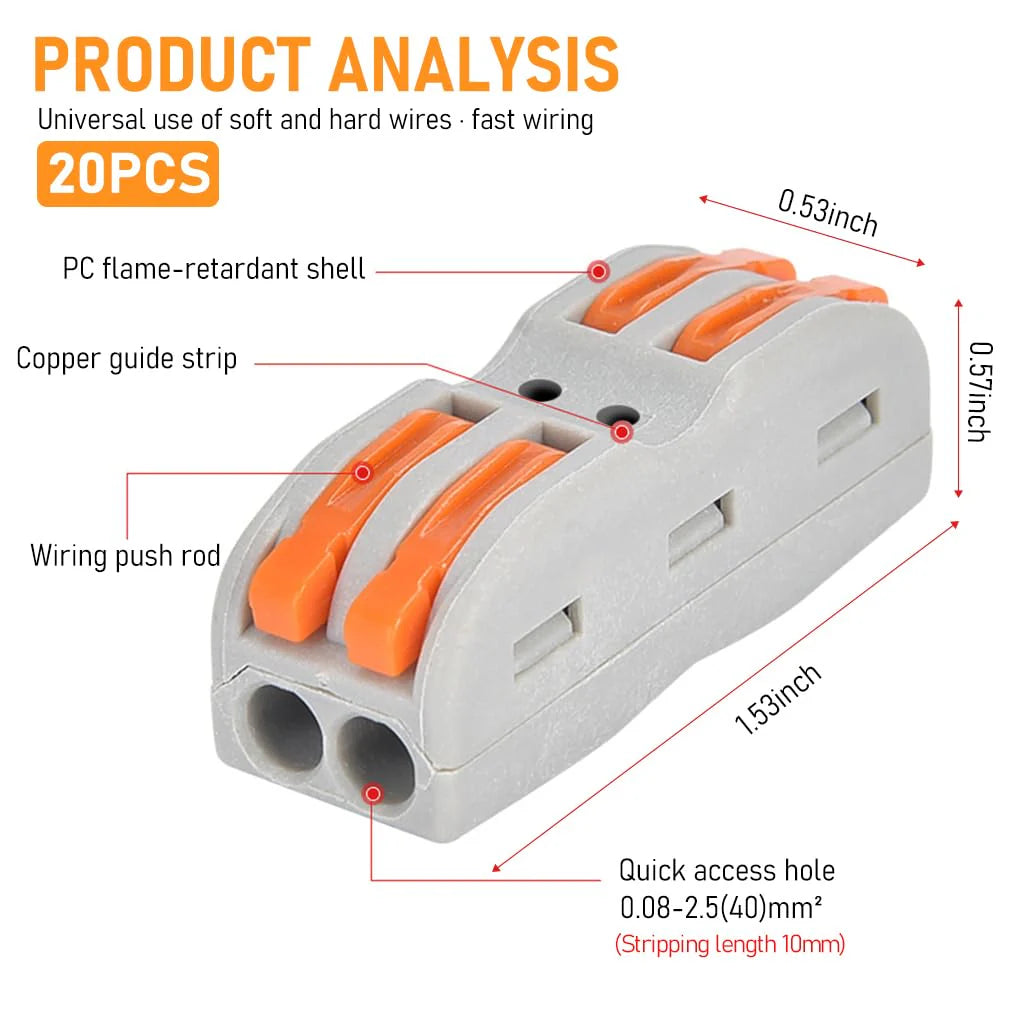

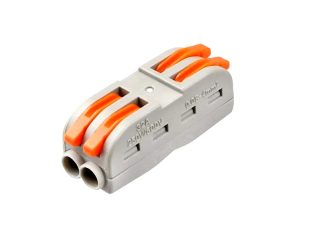

SPL-2 Quick Wire Connector – 2-Port Push-in Wiring Terminal Block (0.08–2.5mm²)

Product Description:

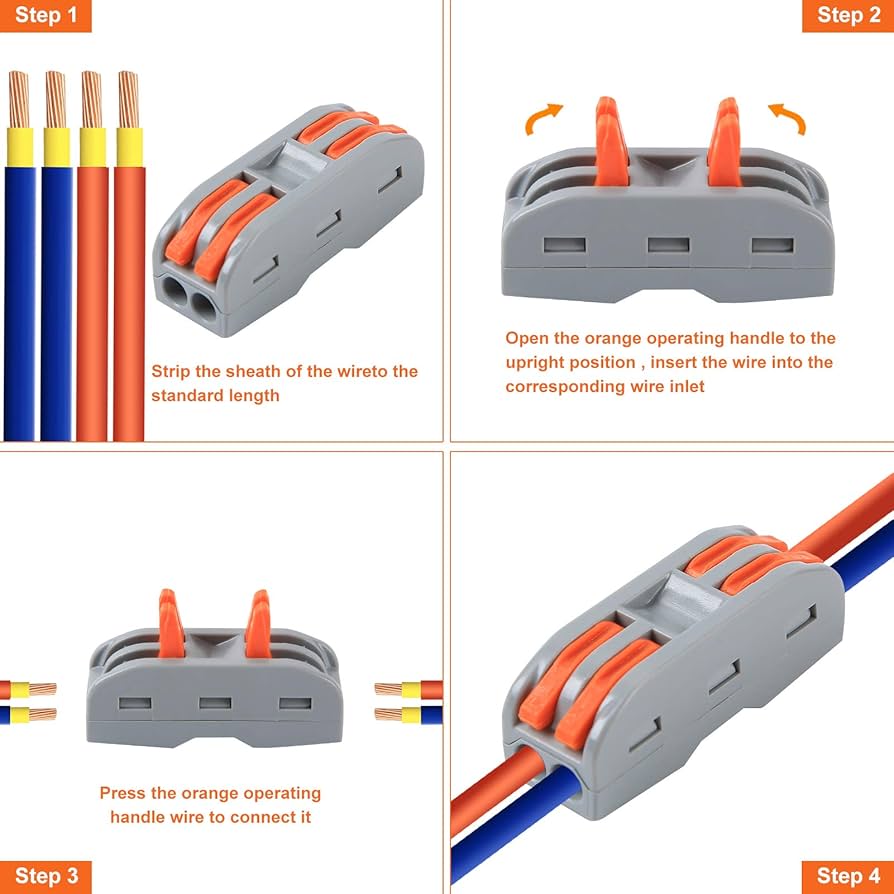

The SPL-2 Quick Wire Connector is a compact 2-port push-in terminal block designed for fast, reliable, and tool-free electrical connections. It allows quick joining of two conductors without the need for twisting, soldering, or using screws—saving both time and effort in electrical installations.

Made from flame-retardant transparent polycarbonate housing and premium copper conductors, the SPL2 ensures excellent conductivity, safety, and durability. Its clear body lets you visually confirm proper wire insertion, making it ideal for lighting fixtures, junction boxes, and panel wiring.

Key Features:

• Model: SPL-2

• Type: Push-in quick wire connector (2 ports)

• Connection Type: Push-in / Tool-free

• Wire Range: 0.08–2.5mm² (AWG 28–14)

• Rated Voltage: 250V / 600V (depending on standard)

• Rated Current: Up to 24A

• Material: Flame-retardant PC housing with copper contacts

• Color: Transparent body with orange push levers

• Temperature Range: -40°C to +105°C

• Reusable: Yes – open, release, and reconnect easily

• Certification: CE / RoHS compliant

Applications:

• Lighting and ceiling wiring

• Junction and distribution boxes

• Control panels and terminal enclosures

• Household and industrial electrical installations

• Testing, maintenance, and DIY wiring projects
