Sub-Miniature 3-Pin SPDT ON-OFF-ON Rocker Switch, Snap-in Panel Mount, AC 6A/125V 3A/250V

Name: Sub-Miniature 3-Pin SPDT ON-OFF-ON Rocker Switch, Snap-in Panel Mount, AC 6A/125V 3A/250V
Brand: Electrical Supplies Ghana
Price: 8.00 GHS
Availability: InStock

GH₵8.00

~~GH₵12.00~~ GH₵8.00

Sale Sold out

Quantity

Detailed Title

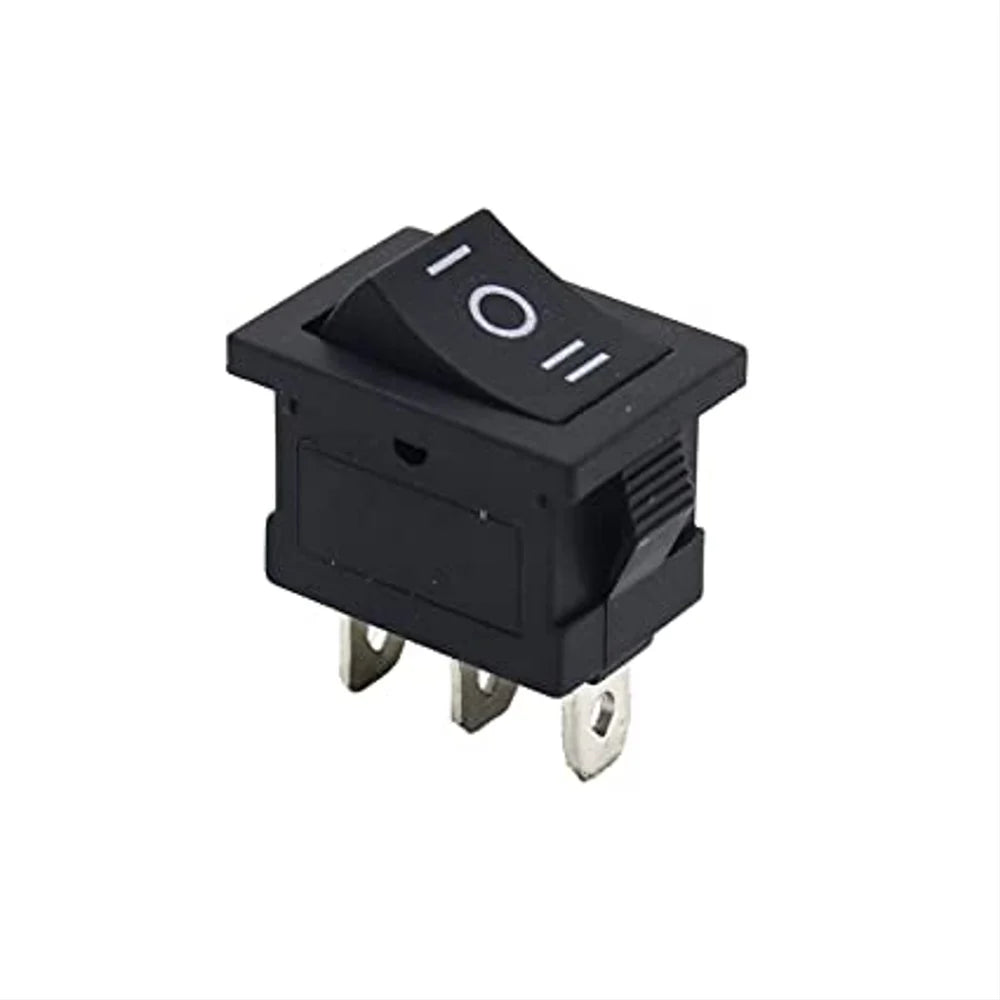

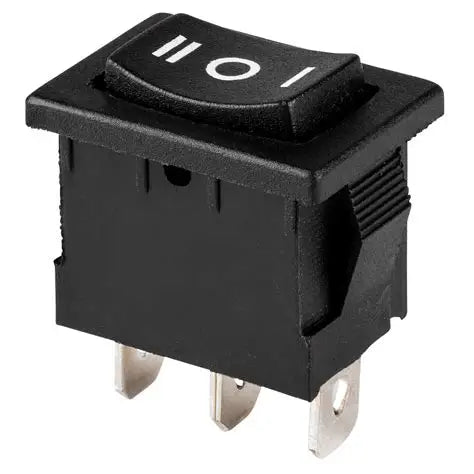

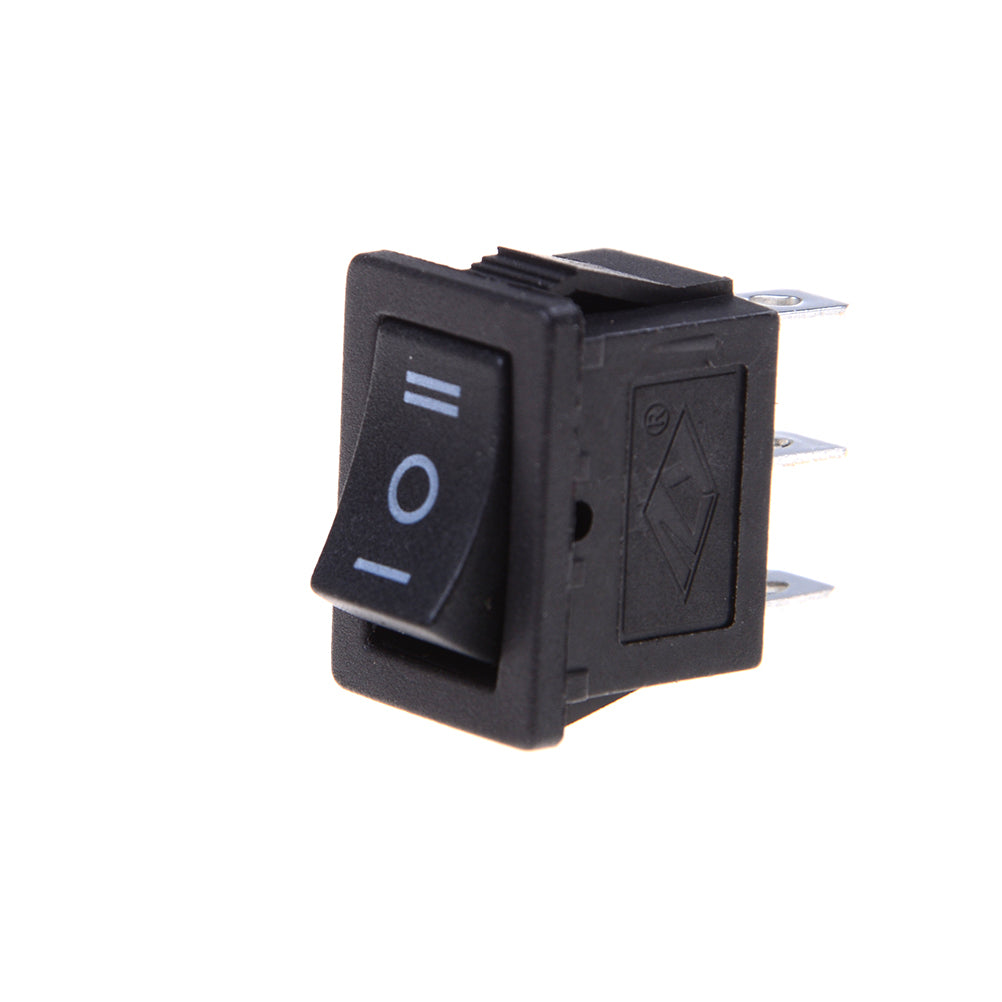

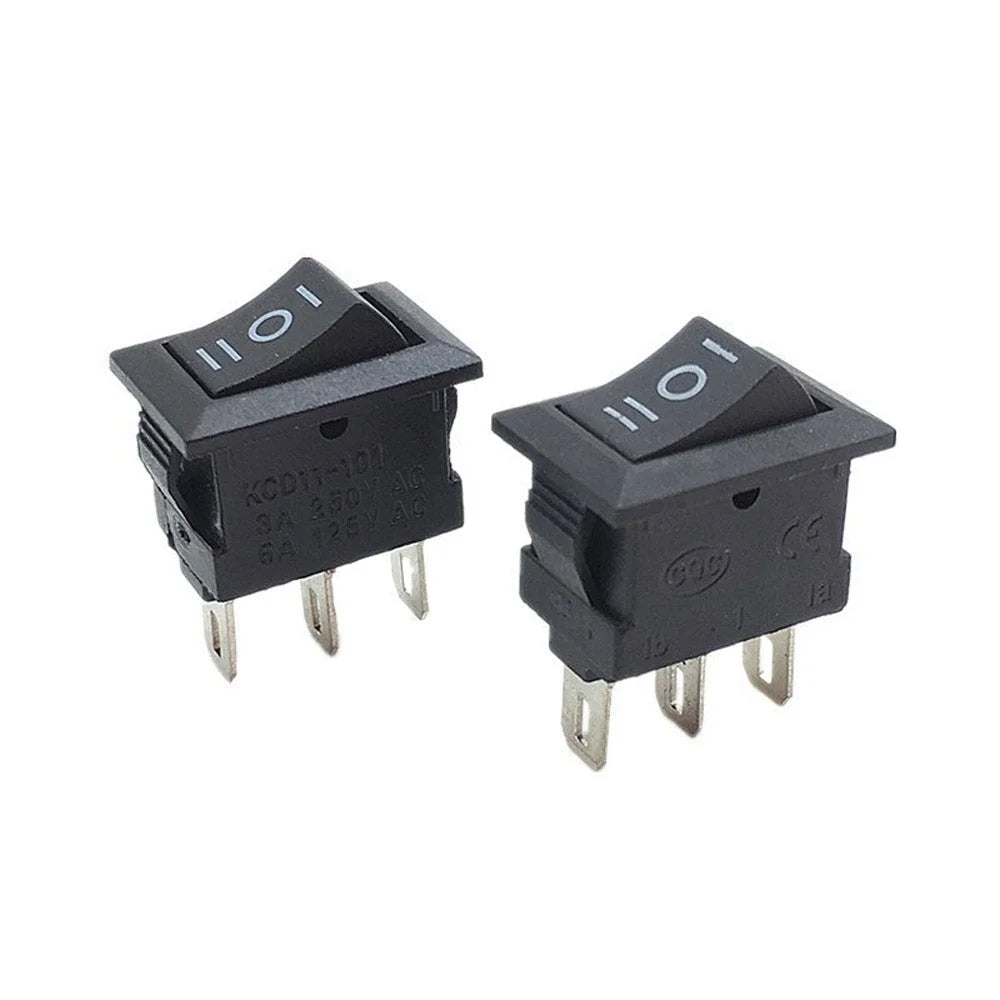

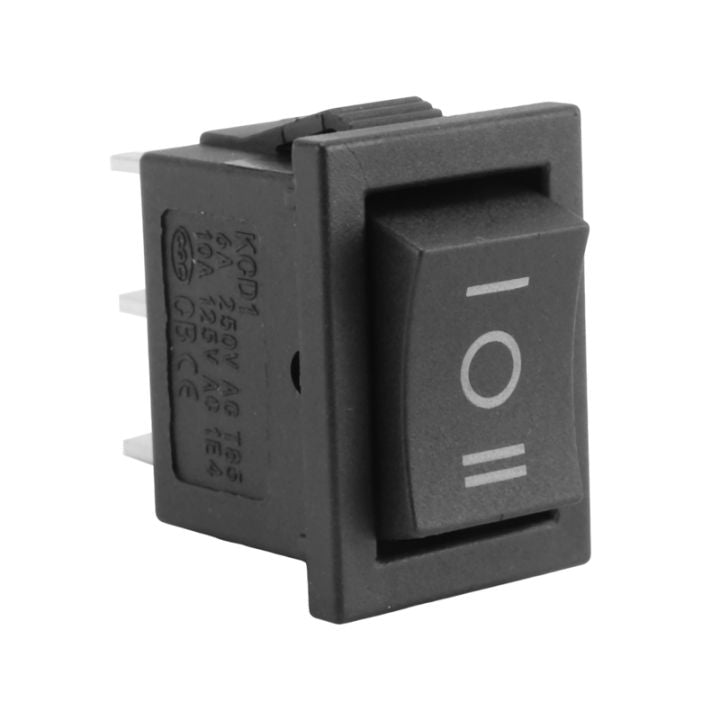

Sub-Miniature 3-Pin SPDT ON-OFF-ON Rocker Switch, Snap-in Panel Mount, AC 6A/125V 3A/250V

Detailed Description

This is a high-quality, sub-miniature KCD05-103 series rocker switch designed for reliable three-position power control (ON-OFF-ON) in a variety of applications, including household appliances, automotive systems, and DIY projects. The switch features a durable black nylon 66 housing and button with a snap-in panel mount design for easy installation.

Key Specifications:

Model: KCD05-103 (also commonly referred to as KCD1-103 or KCD5-103 by various manufacturers)
Switch Operation: 3-Position, Latching ON-OFF-ON
Contact Configuration: SPDT (Single Pole Double Throw)
Terminals: 3 Pins (brass terminals with silver plating for good electrical conductivity)
Rated Voltage/Current:
- AC 125V / 6A
- AC 250V / 3A
Mounting Type: Snap-in panel mount
Housing/Button Material: Rugged Nylon 66
Electrical Life:

$is greater than or equal to$

10,000 cycles
Mechanical Life:

$is greater than or equal to$

100,000 cycles
Certifications: CE, CQC, SGS certified

This switch is a versatile component for controlling power to different loads or selecting between two power sources, making it a standard choice for equipment repair and custom control panels.
