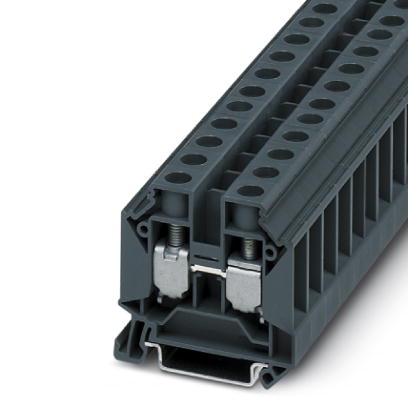

TB 10 I – Feed-through Terminal Block | Phoenix Contact (3246340)

Powerful connectivity. Compact design.
The TB 10 I terminal block offers a robust screw connection system for secure, high-capacity wiring. With a 10 mm² rated cross section and 57 A current rating, it’s built for demanding control panel and automation environments.

🔧 Technical Specifications:

• Part Number: 3246340
• Connection Method: Screw connection (M4 thread)
• Rated Voltage: 800 V
• Rated Current: 57 A
• Rated Cross Section: 10 mm²
• Conductor Size Range:
• Rigid: 1.5 mm² – 16 mm²
• Flexible: 1.5 mm² – 10 mm²
• AWG: 14 – 6
• Stripping Length: 10 mm
• Mounting Type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Color: Traffic Grey B (RAL 7043)
• Width: 10.2 mm
• Height: 42.5 mm
• Depth:
• 47 mm (NS 35/7.5)
• 54.5 mm (NS 35/15)
• 52 mm (NS 32)
• Weight per Piece: 15.53 g

🔒 Safety & Compliance:

• Overvoltage Category: III
• Pollution Degree: 3
• Surge Voltage Rating: 8 kV
• Flammability Rating: UL 94 V0
• Rail Vehicle Fire Protection:
• DIN EN 45545-2 (R22, R23, R24, R26 HL 1–3)
• NFPA 130 Compliance:
• Surface flammability (ASTM E 162)
• Smoke density (ASTM E 662)
• Smoke toxicity (SMP 800C)
• RoHS & REACH Compliant

📦 Packaging:

• Minimum Order Quantity: 50 pcs
• Packaging Unit: 50 pcs
• Country of Origin: China
• Customs Tariff Code: 85369010
• GTIN: 4046356608428
