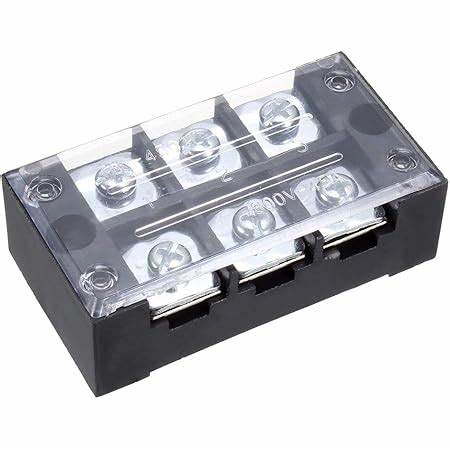

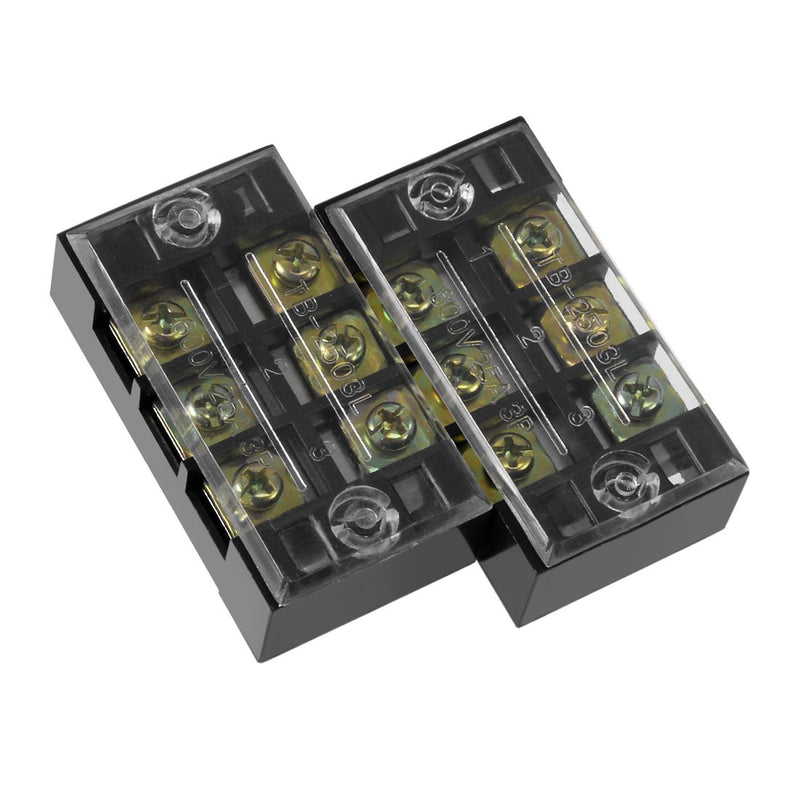

TB-1003 – 3-Pole 100A Terminal Block

Rated Voltage: 600V Rated Current: 100A Poles: 3
Mounting: Panel mount (bolt fixed) Enclosure: Molded plastic with transparent cover

Key Specifications:

• Wire Range: 2.5–10 mm²
• Screw Size: M5 (galvanized steel)
• Conductor Material: Nickel-plated H54 brass
• Base Material: Flame-retardant ABS (UL94V-2)
• Cover Material: Transparent benzene (natural color)
• Dimensions: 86.5 × 43.5 × 35 mm (L × W × H)
• Operating Temperature: -40°C to +100°C
• Certifications: RoHS compliant

Features:

• High-current capacity with secure screw terminals
• Transparent cover for visual inspection and added safety
• Durable thermoset plastic base for heat resistance
• Compatible with OT/UT terminal lugs
• Ideal for compact, high-power distribution in control panels

Applications:

• Industrial automation and control systems
• Power distribution panels
• HVAC and building management
• Security and access control wiring
