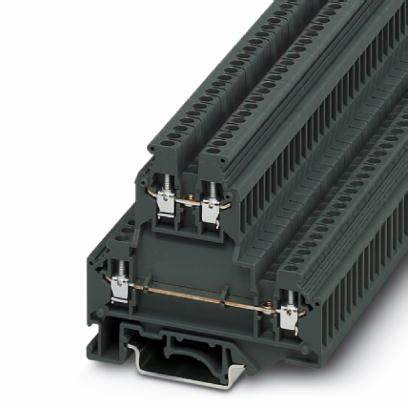

TB 2,5-2L I – Multi-level Terminal Block | Phoenix Contact (3246528)

Double-level design. Space-saving performance.

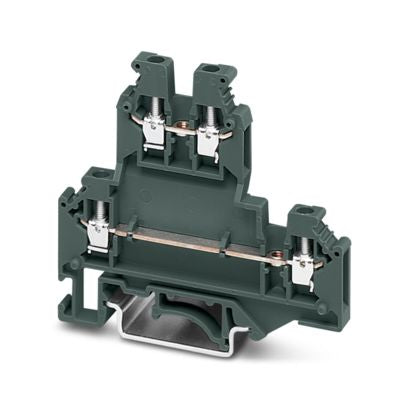

The TB 2,5-2L I terminal block features two bridgeable levels, enabling efficient wiring in tight spaces. With a screw connection system and robust insulation, it ensures secure and reliable connections for industrial applications.

🔧 Technical Specifications:

• Part Number: 3246528
• Connection Method: Screw connection (M2.5 thread)
• Number of Levels: 2
• Number of Connections: 4 (2 per level)
• Rated Voltage: 500 V
• Rated Current: 21 A
• Maximum Load Current: 24 A (with 4 mm² conductor)
• Rated Cross Section: 2.5 mm²
• Conductor Size Range:
• Rigid: 0.5 mm² – 4 mm²
• Flexible: 0.5 mm² – 2.5 mm²
• AWG: 20 – 12
• Stripping Length: 8 mm
• Tightening Torque: 0.4 – 0.5 Nm
• Mounting Type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Color: Dark Gray (RAL 7043)
• Width: 5.2 mm
• Height: 67 mm
• Depth:
• 62 mm (NS 35/7.5)
• 69.5 mm (NS 35/15)
• 67 mm (NS 32)
• Weight per Piece: Approx. 11.89 g

🔒 Safety & Compliance:

• Overvoltage Category: III
• Pollution Degree: 3
• Surge Voltage Rating: 6 kV
• Flammability Rating: UL 94 V0
• Insulating Material: PA (Polyamide), Group I
• RoHS & REACH Compliant

🌡 Environmental Conditions:

• Operating Temperature: -40 °C to +80 °C
• Storage/Transport Temperature: -60 °C to +70 °C
• Humidity (Storage/Transport): 30% – 70%
