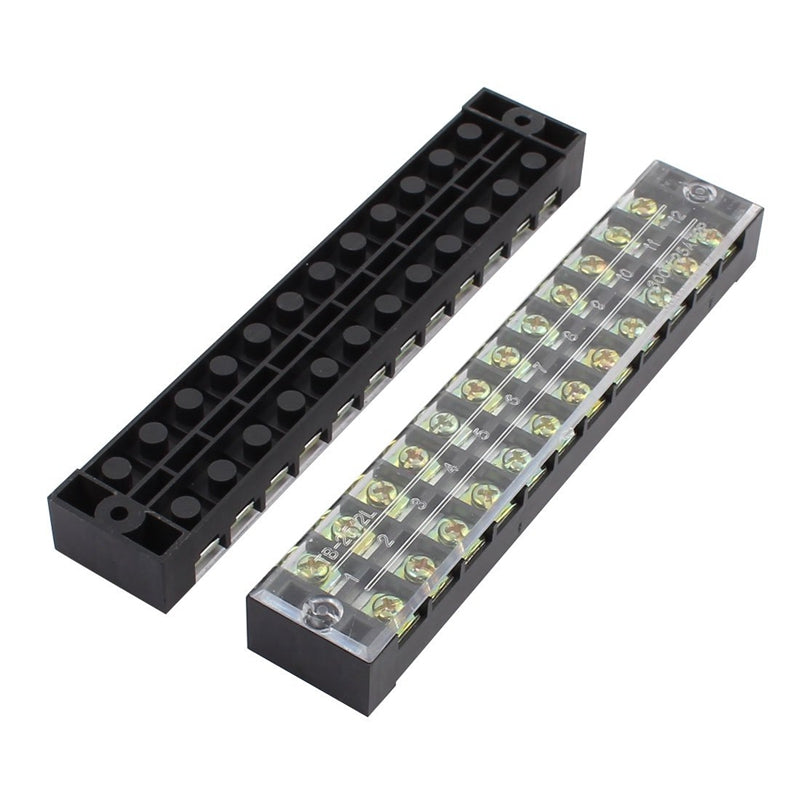

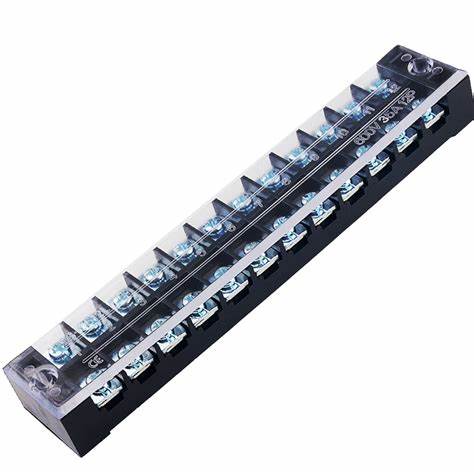

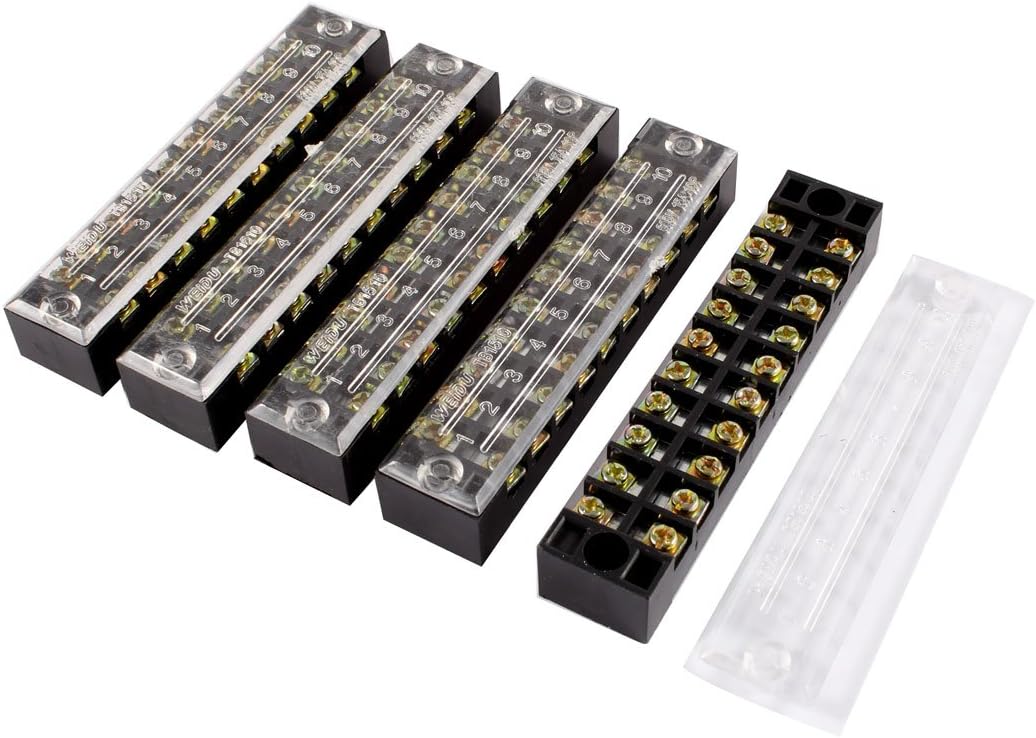

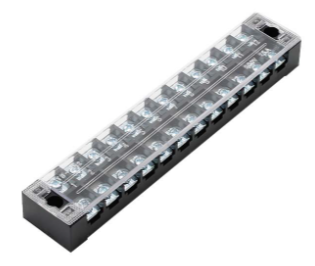

TB-3512 – 12-Pole 35A Terminal Block

Rated Voltage: 600V Rated Current: 35A Poles: 12
Mounting: Panel mount (DIN rail not required) Enclosure: Molded plastic with protective cover

Key Specifications:

• Wire Size: Up to 10 mm² / AWG 8
• Screw Size: M4 (steel, zinc-plated)
• Dimensions: 164 × 30 × 19.5 mm (L × W × H)
• Pitch: 12.0 mm
• Operating Temperature: -40°C to +110°C (max 220°C)
• Flame Retardant Rating: UL94V-2 (UL94V-0 optional)
• Conductor Material: Brass, nickel-plated
• Color: Black (custom colors available)
• Certifications: RoHS compliant
• Accessories: Includes protective cover; molded printed labels (no marker strip needed)

Applications:

• Industrial control panels
• Power distribution blocks
• Automation systems
• HVAC and building management
• Security and access control wiring
