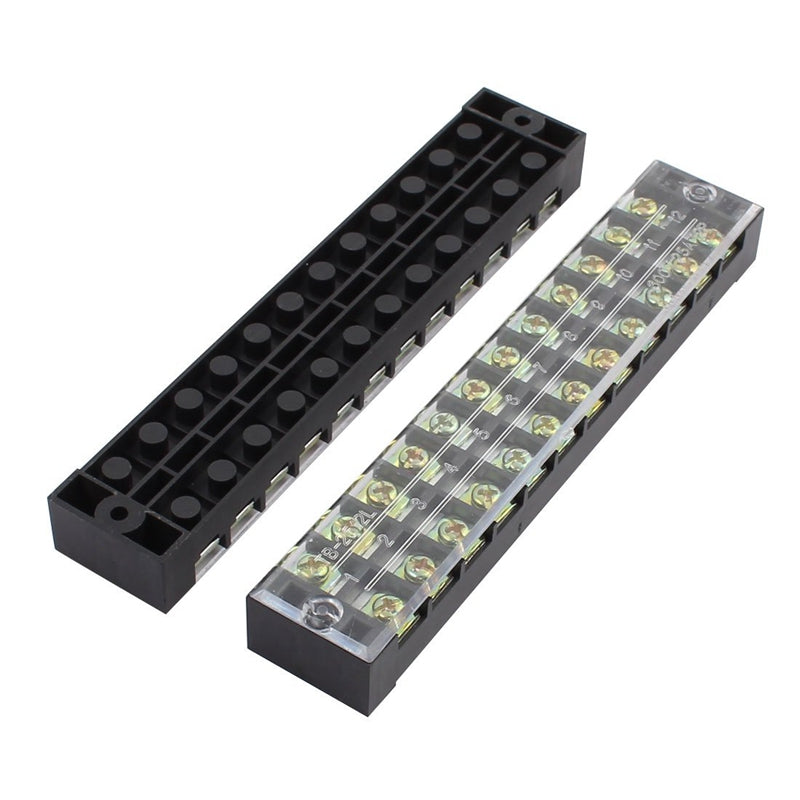

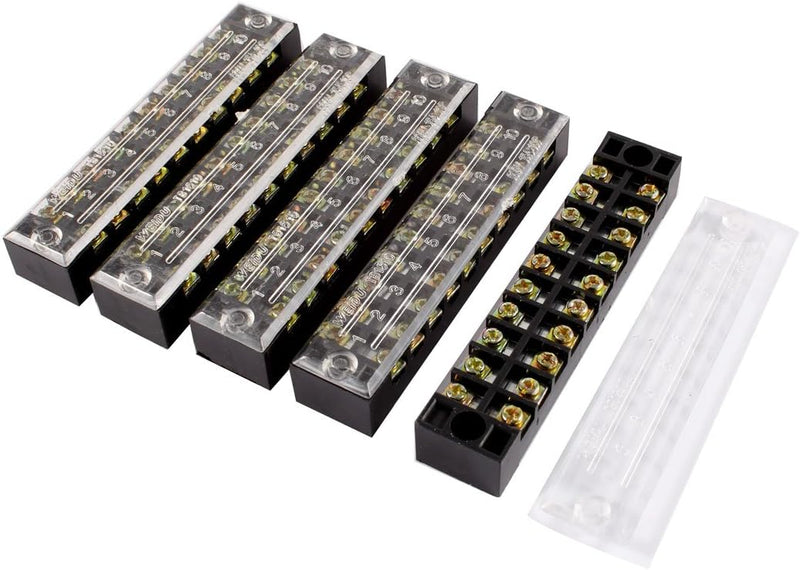

TB-6012 – 12-Pole 60A Terminal Block

Rated Voltage: 600V Rated Current: 60A Poles: 12
Mounting: Panel mount (bolt fixed) Enclosure: Molded plastic with transparent cover

Key Specifications:

• Wire Range: 2.5–6 mm²
• Screw Size: M5 (galvanized steel)
• Conductor Material: Nickel-plated brass
• Base Material: Flame-retardant ABS (UL94V-2)
• Cover Material: Transparent benzene (natural color)
• Dimensions: 234.5 × 38 × 30 mm (L × W × H)
• Operating Temperature: -40°C to +100°C
• Certifications: RoHS compliant

Features:

• High-current capacity with secure screw terminals
• Transparent cover for visual inspection and safety
• Durable thermoset plastic base for heat resistance
• Compatible with OT/UT terminal lugs
• Ideal for large-current distribution in compact control panels

Applications:

• Industrial automation and control systems
• Power distribution panels
• HVAC and building management
• Security and access control wiring
