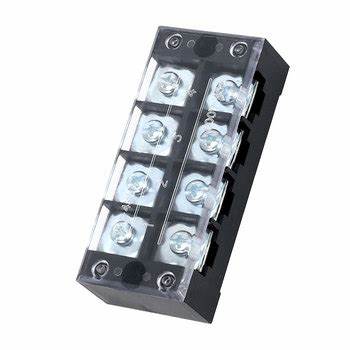

TB-604 – 4-Pole 35A Terminal Block

Rated Voltage: 600V Rated Current: 35A Poles: 4
Mounting: Panel mount (screw fixed) Enclosure: Molded plastic with protective cover

Key Specifications:

• Wire Range: 2.5–6 mm²
• Screw Size: M4 (galvanized steel)
• Conductor Material: Nickel-plated brass
• Base Material: Flame-retardant ABS (UL94V-2)
• Cover Material: Transparent benzene (natural color)
• Dimensions: Approx. 75 × 30 × 23 mm (L × W × H)
• Operating Temperature: -40°C to +100°C
• Certifications: RoHS compliant

Features:

• Secure screw terminals for reliable connections
• Transparent cover for visual inspection and safety
• Durable thermoset plastic base for heat resistance
• Compatible with OT/UT terminal lugs
• Ideal for compact power distribution in control panels

Applications:

• Industrial control panels
• Power distribution systems
• HVAC and building automation
• Security and access control wiring
