TESTFOX CC-1 Clamp Multimeter – True RMS AC/DC Voltage & Current Resistance CAT III 300 V Phoenix Contact (1212211)

Product Overview:

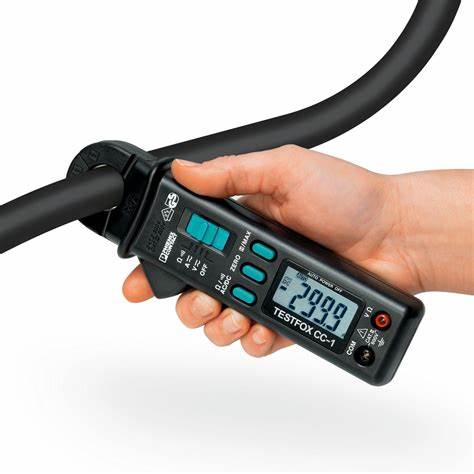

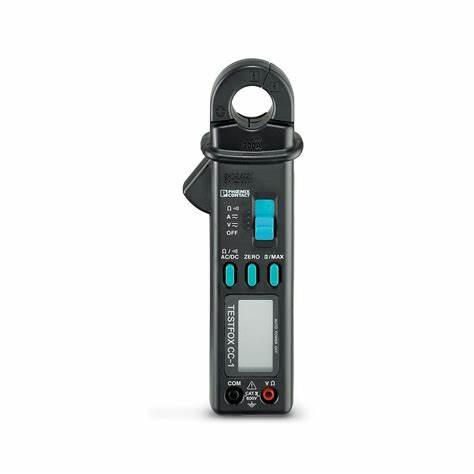

The TESTFOX CC-1 is a compact, True RMS clamp multimeter designed for precise AC/DC voltage and current measurements, resistance testing, and continuity checks. Its integrated current probe and overload protection make it a reliable tool for technicians working in tight spaces or demanding environments.

Key Features:

• Measurement Functions:
• AC/DC Voltage: up to 600 V
• AC/DC Current: up to 300 A
• Resistance: up to 4 GΩ
• Continuity and diode testing
• True RMS for accurate readings on non-linear loads
• Display & Indicators:
• 4000-count LCD display
• Audible continuity buzzer
• Compact clamp design with 22 mm jaw opening
• Accuracy:

• DC Voltage: ±0.5% + 2 digits
• AC Voltage: ±2% + 5 digits
• DC/AC Current: ±1% + 2–5 digits
• Resistance: ±1.2% + 6 digits

Technical Specifications:

• Safety Rating: CAT III 300 V / CAT II 600 V
• Protection Class: IP30
• Power Supply: 2 × AAA (1.5 V) batteries
• Battery Life: Approx. 60 hours
• Dimensions: 192 × 66 × 27 mm
• Weight: 205 g
• Operating Temp: 0 °C to +50 °C
• Compliance: IEC/EN 61010-1, DIN VDE 0411
• GTIN: 4046356449809
• Country of Origin: Taiwan

Applications:

• Electrical maintenance and diagnostics
• Industrial automation systems
• HVAC and control panel servicing
• Field service and mobile troubleshooting
