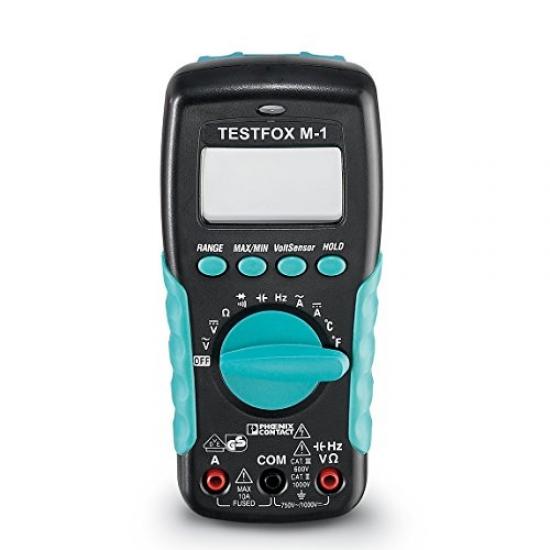

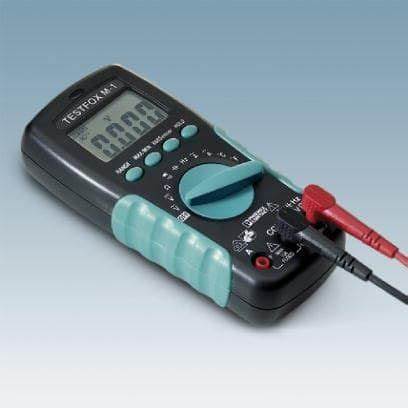

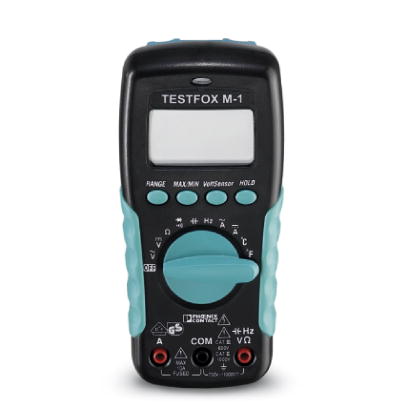

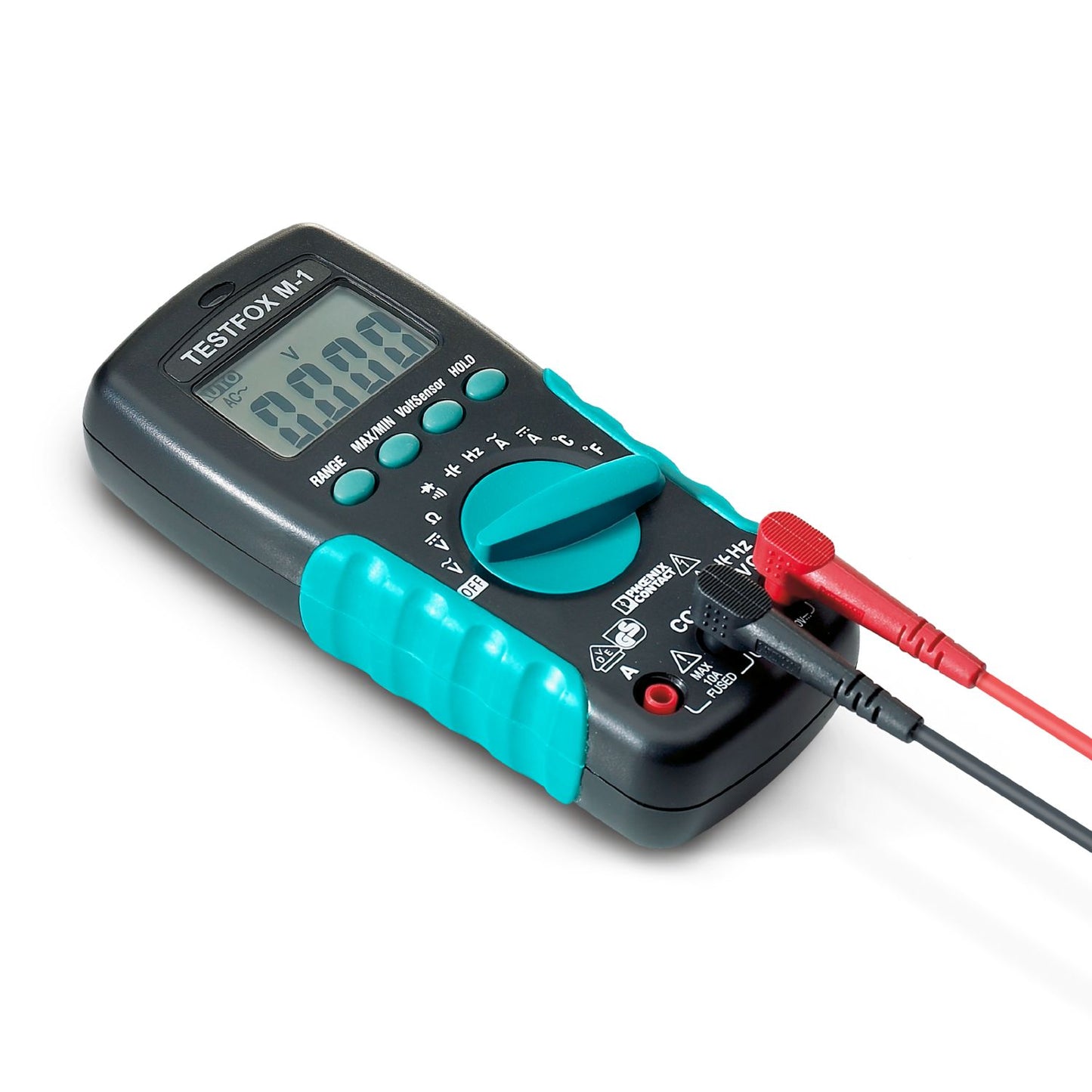

TESTFOX M-1 Digital Multimeter – AC/DC Voltage, Current, Resistance, Frequency, Temperature CAT III 600 V Phoenix Contact (1212209)

Overview:
The TESTFOX M-1 from Phoenix Contact is a versatile digital multimeter designed for professional-grade electrical diagnostics. With a wide range of measurement capabilities—including AC/DC voltage and current, resistance, frequency, capacitance, and temperature—it’s a compact yet powerful tool for engineers, technicians, and electricians.

Key Features:

• Measurement Functions:
• AC/DC Voltage up to 1000 V (CAT II) / 600 V (CAT III)
• AC/DC Current
• Resistance, Frequency (1 Hz to 20 MHz), Capacitance
• Temperature: –20 °C to +800 °C
• Continuity and Diode Testing
• Display & Indicators:
• 2000-count LCD display
• Audible and red LED indicators for phase detection and continuity
• Visual fault tracing for cable breaks and faulty lamps
• Build & Safety:

• Safety Category: CAT III 600 V / CAT II 1000 V
• Protection Class: IP30
• Standards: IEC/EN 61010-1, DIN VDE 0411
• Power Supply: 2 × AAA (1.5 V) batteries
• Dimensions: 156 × 74 × 44 mm
• Weight: 631 g

Environmental Ratings:

• Operating Temperature: 0 °C to 50 °C
• Humidity: 50% to 80%
• RoHS Compliant (China EFUP-50)
• Country of Origin: Taiwan

Applications:

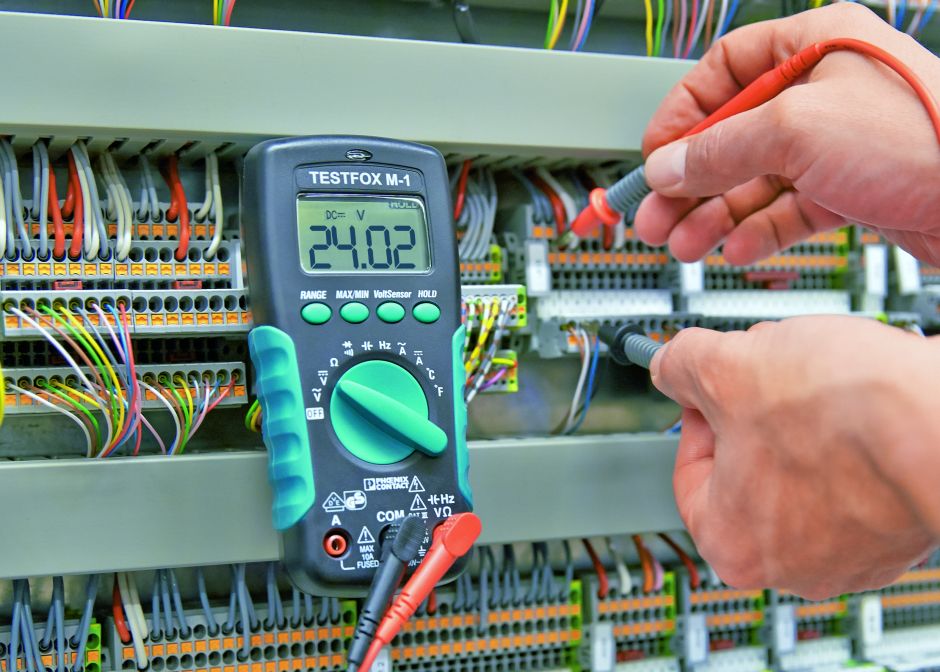

• Electrical maintenance and troubleshooting
• Industrial automation diagnostics
• HVAC and control panel servicing
• Educational and training labs
